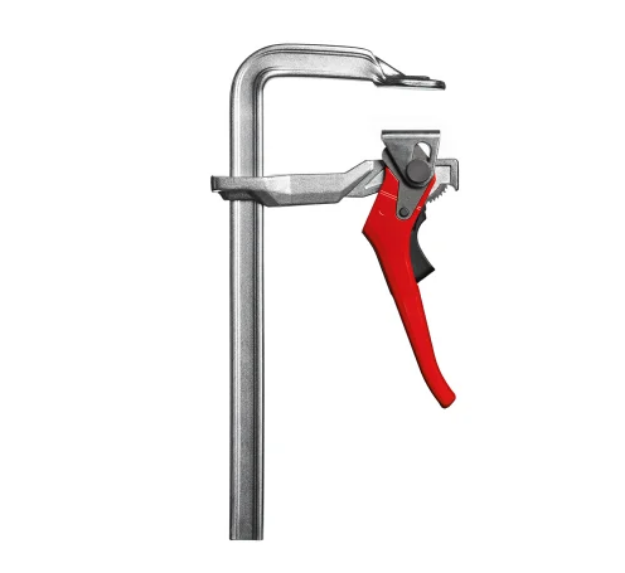

Bessey Lever Clamp GH Series
Gedore Lever Clamp GH Series are lightweight and easy to handle. They can clamp 5x faster than conventional clamps. By using the natural force of the lever, a small amount of effort can quickly produce large clamping pressures.
The ratchet mechanism ensures rapid, controlled, vibration-free clamping.
The optimised profile shape, with greater reserves of force, enables a more even application of force especially under full utilisation of clamping range. The fixed bracket and pressure plate are produced and tempered from a single piece and are torsion-resistant.
The sliding arm is serrated and made from tempered, drop-forged steel. For a long service life.
The powder-coated clamping lever has an ergonomic shape. The plastic-coated non-slip release lever provides a secure hold as you release the clamp.
Product Specification
Clamping force up to 8500N
Vibration resistant
Non-slip trigger release
5 x faster than regular clamps
Jaw Opening 400mm
Operating Tension 8.5kN
Jaw Depth 120mm
Weight 2.4kg
