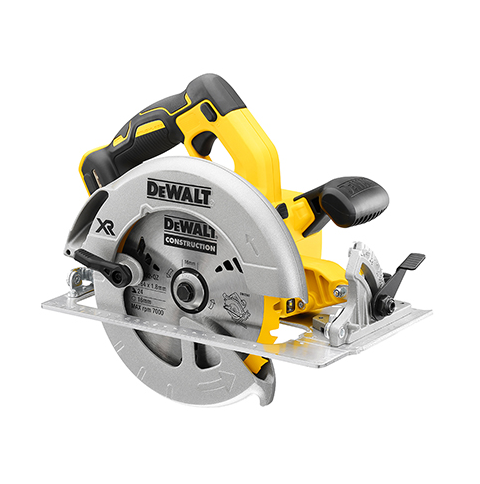

DEWALT DCS570N 18V XR BRUSHLESS CIRCULAR SAW
Scale for precise cutting depth setting to 65 mm
General purpose ripping, cross-cutting and bevelling circular saw for wood and other construction materials
High torque Brushless motor for durability and power for cutting job site and joinery materials
Stable block construction for low vibration running and long service life
Additional handle for safe two-handed work
Variable adjustment of the bevel angle to 57 degrees
Optimum balance for safe, fatigue-free operation
Precision 24 tooth saw blade
Rip Fence
Blade Spanner
Dust Extraction Spout
Product Specifications
Power Input - Watts
Power Output - Watt
No Load Speed 5500 rpm
Blade Diameter 184 mm
Blade Bore 16 mm
Bevel Capacity 57 °
Max. Depth of Cut at 90º 64 mm
Max. Depth of Cut at 90º[with guide rails] NA mm
Max. Depth of Cut at 45º NA mm
Max. Depth of Cut at 45º[with guide rails] NA mm
Weight 3.6 kg
Length 355 mm
Height 245 mm
Hand/Arm Vibration 2.5 m/s2
Uncertainty K 1 (Vibration) 1.5 m/s²
Sound Pressure 91 dB(A)
Sound Pressure Uncertainty 3 dB(A)
Sound Power 102 dB(A)
Sound Power Uncertainty 3 dB(A)
Battery chemistry Li-Ion
Voltage 18v V
Battery Capacity - Ah
