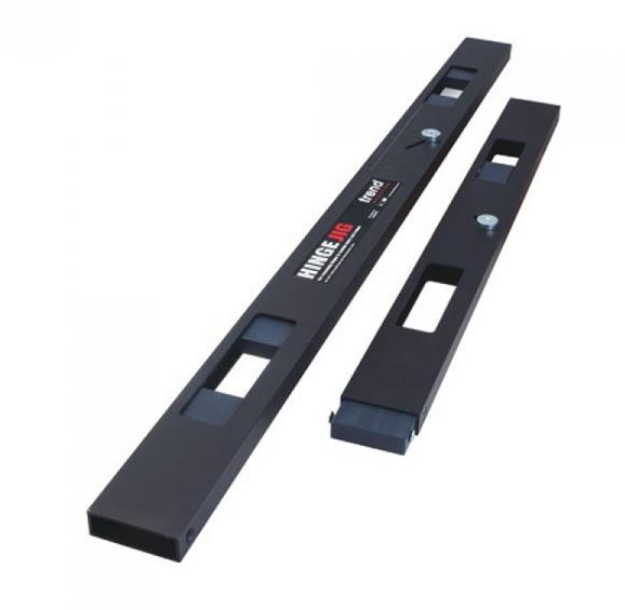

TREND H/JIG/A 2 PIECE HINGE JIG

TREND H/JIG/A 2 PIECE HINGE JIG - EHTRCTR-H-JIG-A
€299.00 incl vat
SKU: EHTRCTR-H-JIG-A
In stock
+ -

TREND H/JIG/A 2 PIECE HINGE JIG


It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Four apertures for fire door requirements.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time.
Suitable for timber based doors & square butt hinges.
Use with a light duty router with 1/4 inch collet.
Long reach router cutter required, 12mm diameter with 70mm overall length.
Angled position slots to prevent creep.
Unibase may be needed.
Patent No. GB2285410.
T4EK router requires a ref. UNIBASE or special guide bush ref. GB/T4/160.

Product Specifications

Hinge sizes possible
Length min.= 2 5/8" (67 mm)
Length max.= 5" (127 mm)
Width min.= 3/8" (9.5 mm)
Width max.= 1 3/8" (35 mm)

Door sizes possible
Height min.= 6' 5" (1955 mm)
Height max.= 2100 mm*
Thickness min.= 5/8" (16 mm)
Weight= 3.3 kg
Jig overall length= 1957 mm


*
*
*
