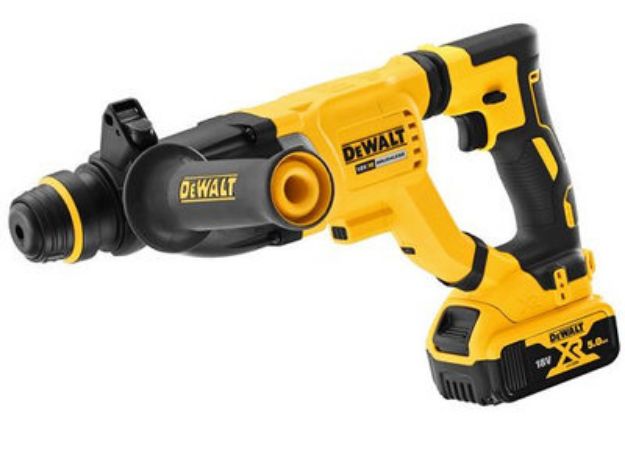

This rotary hammer is capable of producing up to 3.0J of impact energy, allowing you to drill into concrete up to 28mm. With 3 modes – Rotary only drilling, Hammer Drilling & Chiselling, the 1165 RPM ensures fast & effective completion of even the most demanding tasks.
The DCH263 quickly performs in chipping applications & has a wide optimal drilling range between 6mm & 19mm.
The SHOCKS-Active Vibration Control system reduces vibration felt at the handles, compared to hammers without this feature.
With its hard-hitting mechanism, fast drilling speed, and balanced design, this hammer is ideally suited for all day use, even with large diameter hole drilling in the hardest concrete.
3.0J Impact Energy – For efficiency and power during hammer drilling and chipping applications.
Active Vibration Control – Floating rear handle reduces hand/arm vibration offering excellent user comfort & safety
BL51 Brushless Motor – Industry proven motor design that providing excellent runtime and durability.
Bright LED – Provides superior illumination of the work area.
Drilling Speed – With its hard-hitting mechanism, fast drilling speed, and balanced design, this hammer is ideally suited for all day use,
even with large diameter hole drilling in the hardest concrete.
PERFORM & PROTECT – Anti-Vibration Control rear handle reduces hand/arm vibration to 9.1m/s2.
Product Specifications
Max. drilling capacity (concrete) 28 mm
Max. drilling capacity (drilling crown) 65 mm
Max. drilling capacity (wood) 30 mm
Max. drilling capacity (metal) 13 mm
Weight 2.7 kg Length 404 mm
Height 187 mm Width 84 mm
Hand / Arm vibration hammer drilling in concrete 9.1 m / s
Measurement uncertainty K 1 (Vibration) 1.5 m / s²
Hand / arm vibration drilling in metal m / s²
Measurement uncertainty K 3 (Vibrating) m / s²
Hand / arm vibration screws without the hammer function m / s²
Uncertainty K 1 (Sound) dB (A)
Sound power level dB (A) Hand / Arm Vibration -
Chiseling 7.7 m / s²
Uncertainty K 2 (Vibration) 1.5 m / s²
