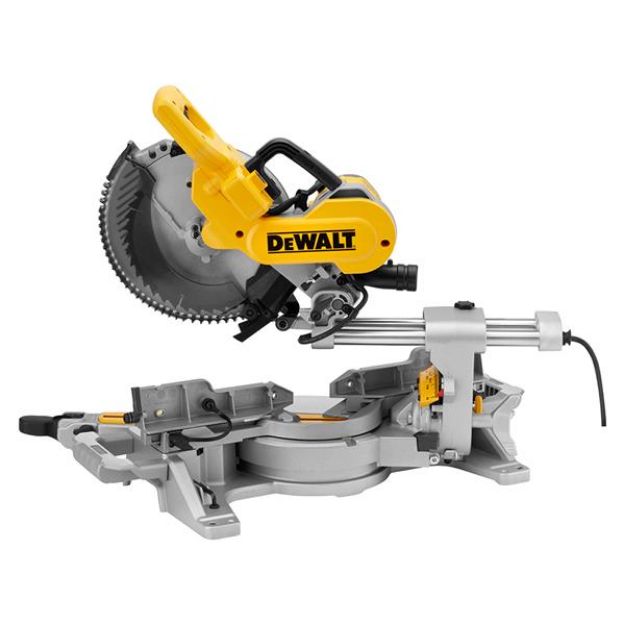

Features
Cam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles 0-50 degree left and 0-60 degree right
Compact and lightweight design characteristics deliver a saw with application focused capacities which is easy to transport around the job site
The Innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
The large dual sliding fence gives maximum support in large material cuts at any angle of combination of angles, includes integrated short stop for repetitive cuts
Linear horizontal rails utilize bronze guides to provide maximum precision when cutting materials up to 305 mm wide
Quick release bevel setting provides accurate and simple setting of bevel angles up to 48 degree left and right
XPS shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increase productivity
Airlock compatible dust extraction for improved health/safety and cleaner job sites
Meet latest IEC table requirements and improve portability and handling
Highly accurate roller bearing system provides maximum precision
Product Specification:
Blade Diameter: 250 mm
Bore Size: 30 mm
Power Input: 1675 watt
No-Load Speed: 4300 rpm
Bevel Capacity: 49/49 degree
Mitre Capacity (Left/Right): 60/50 degree
Cutting Capacity (90/90 degree): 305 × 77 mm
Cutting Capacity (90/45 degree): 305 × 50 mm
Cutting Capacity (45/90 degree): 210 × 77 mm
Maximum Cutting Capacity (45/45 degree): 210 × 50 mm
Maximum Depth of Cut: 150 mm
Width: 770 mm
Depth: 480 mm
Height: 460 mm
Weight: 23 kg
Comes With:
DE7023 LEGSTAND
