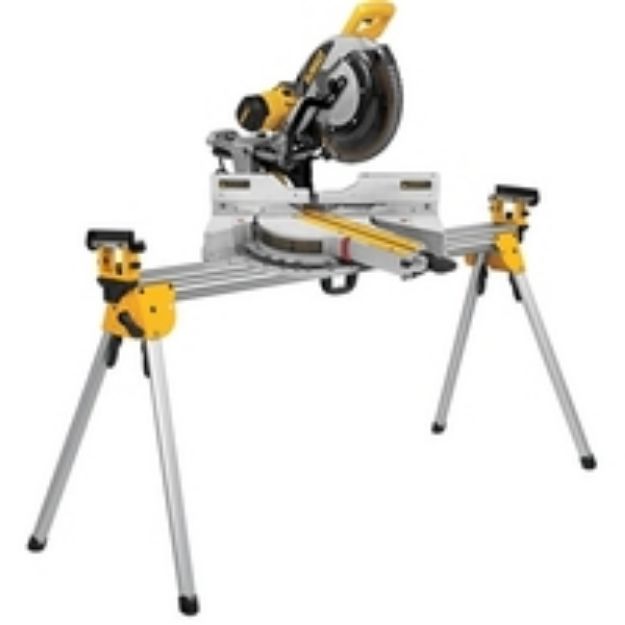

DEWALT DWS780 110V 305mm 12'' COMPOUND MITRE SAW
Outstanding cutting performance in both small profiles and large construction timbers up to 110 x 303 mmXPS Shadow line cut indicator provides fast accurate alignment of the blade while illuminating the work piece for increased productivity no adjustment requiredHeavy duty durability with the ability to fully adjust your machine to mainatin accuracy over the life fo the tool.New quick release bevel stop setting provides accurate and simple setting of bevel angles up to 49° left and rightEasy to use mitre and bevel controls making the tool fast and simple to change from one set up to anotherCam action mitre lock function makes mitre setting faster and easier allowing the user to quickly adjust angles between 0° - 50° left and 0° - 60° rightLong life Accuracy in Table and Fence DesignThe large dual sliding fence gives maximum support in large material cuts at any angle or combination of anglesLinear horizontal rails utilise bronze guides to provide maximum precision when cutting materials up to 345 mm wideCompact and lightweight design characteristics deliver a saw with enormous capacity which is easy to transport around the jobsiteOutstanding dust control and deflection away from cutting areaElectronic speed control for adjusting cutting speed when cutting materials other than woodThe innovative grooving stop allows the adjustment of the cutting depth for grooving and rebating applications
Product Specifications
Power Input 1675 WattsPower Output 960 WattBlade Speed 1900 - 3800 rpmBlade Diameter 305 mmBlade Bore 30 mmBevel Capacity 49/49 °Mitre Capacity [right/left] 60/50 °Cutting Capacity at 90°/45° (W x H) 211 x 112 mmCutting Capacity at 90°/90° (W x H) 303 x110 mmCutting Capacity at 90°/90° (W x H) 345 x 76 mmCutting Capacity at 45°/90° (W x H) 268 x 63 mmCutting Capacity at 45°/90° (W x H) 345 x 44 mmCutting Capacity at 90°/45° (W x H) 244 x 76 mmMax. Cutting Capacity at 45°/45° 212 x 76 mmMax. Depth of Cut [Saws] 170 mmWeight 24.8 kgDepth 470 mmLength 770 mmHeight 396 mmHand/Arm Vibration - Cutting Wood <2.5 m/s²Uncertainty K 1 (Vibration) 1.5 m/s²Sound Power 100 dB(A)Sound Power Uncertainty 3 dB(A)Sound Pressure 93 dB(A)Sound Pressure Uncertainty 3 dB(A)
