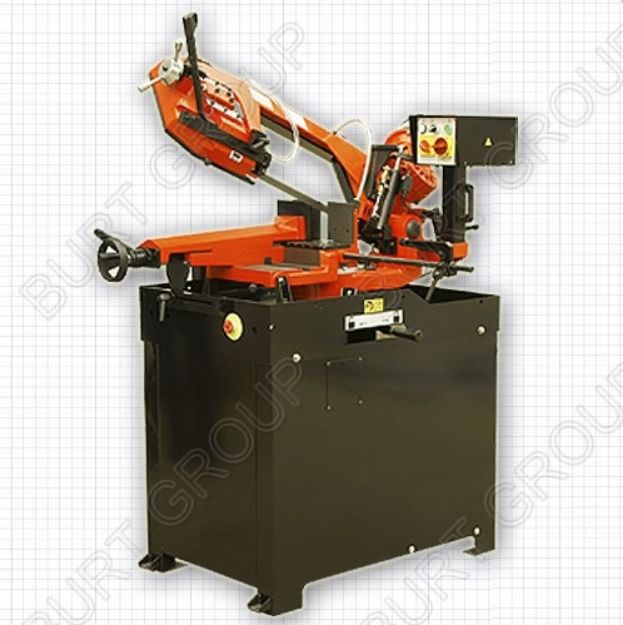

FALCOM 1500W 10'' SWIVEL HEAD METAL BANDSAW 230VOLT MODEL
10" METAL CUTTING BANDSAW WITH SWIVELED BOW WITH TENSIONMETER WITH TENSION METER
Main Features
- Band tension indication - Cast-iron arm - Cooling - Synoptic control cabinet - Rapid-action vice - Automatic hydraulic tilting with rotary arm - With saw blade tension meter supplied as standard accessory
Product Specification
01) Motor: 1.5KW / 0.75KW (380V); 1.5KW(230V) 02) Blade size: 2,725 x27x0.9mm 03) Blade speed(50HZ): 72/36m/min(380V); 72m/min(230V) 04) The bow swivel degree: -45 ~ +60 degrees 05) Cutting Capacity at 90°: ●240mm 240x240mm 310x210mm -Cutting Capacity at 45°: ●200mm 180x180mm 200x140mm -Cutting Capacity at 60°: ●120mm 95x95mm 120x95mm -Cutting Capacity at 45°(L): ●150mm 130x130mm 170x90mm 06) N.G weight: 320/370kgs 07) Packing size(mm): 1600x720x1050(body),1055x745x185(stand)
