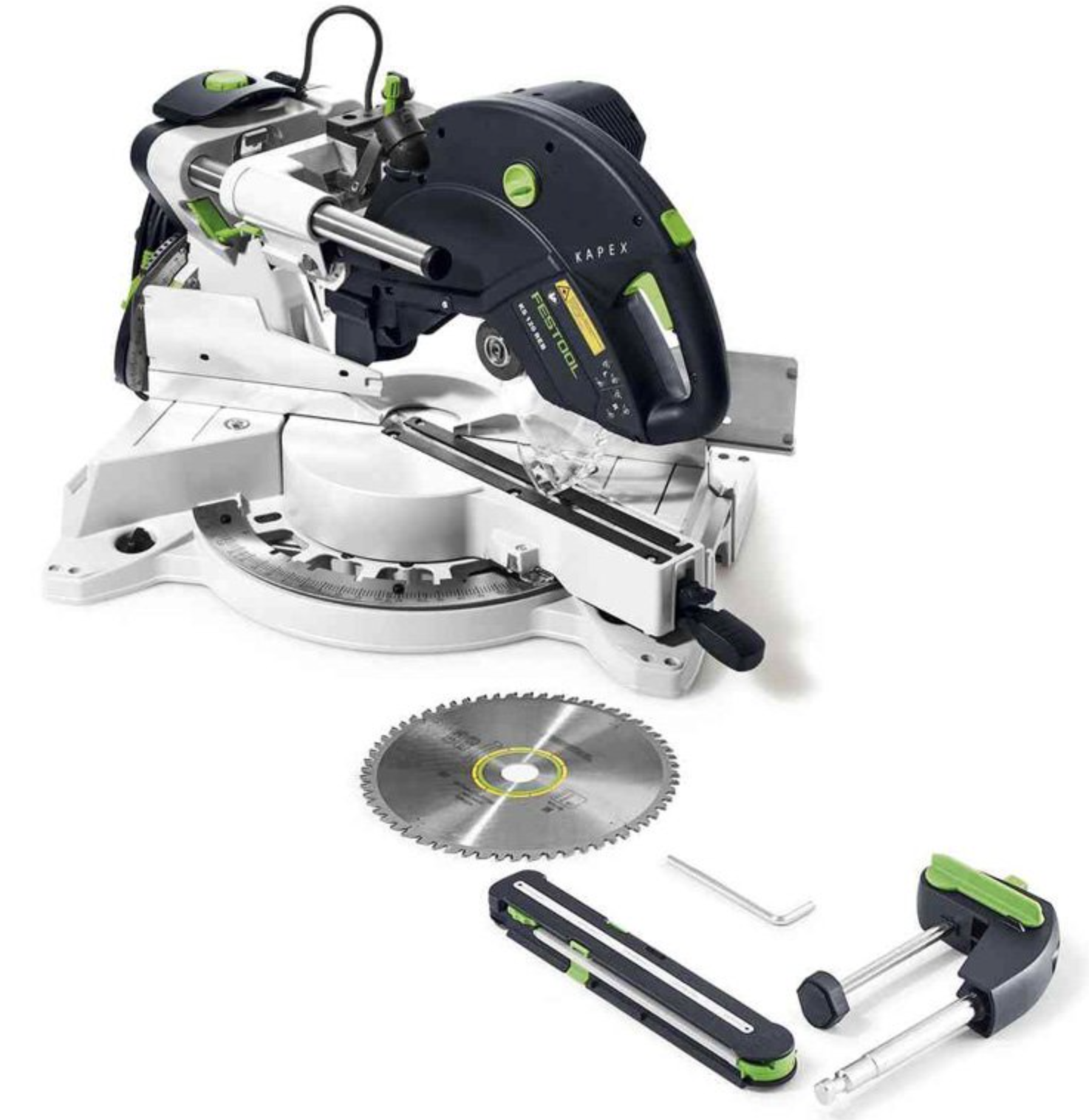

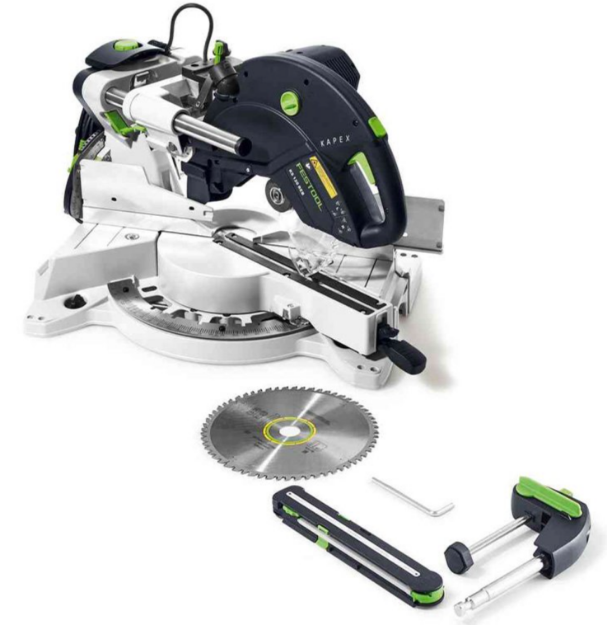

Festool 575305 KS 120 REB GB 110V Kapex Sliding Compound Mitre Saw
Compact, lightweight but with a massive bite that's the new Festool mitre saw Kapex KS 120 EB In common with the Festool ethos this machine is built for the professional who demands quality and accuracy without compromise. Festool have taken the concept of the slide compound mitre saw and redesigned it into a compact, portable machine with masses of well thought out features to enhance ease and accuracy of work.
Safety brake
Twin-column guide with two bearings for unique precision
Dual-line laser for an accurate indication of the cutting line
Fine adjustment of the saw blade angle accurate to the millimetre from the front of the machine
Special cutting position for cutting depths up to 120 mm
FastFix saw blade changing for adaptation to the working material
Twin-column guide for accurate cuts
Precision angle transfer via bevel and dual-line laser
Compact, lightweight design for convenient transportation
Integrated bayonet fitting as the connecting element between the extractor and the tool
Processor controlled Multi Material Control power electronics provide adjustable and constant speeds as well as temperature monitoring for work on all types of material
For safe work when planing, sawing and routing
Makes changing routing, sawing, planning, sanding, drilling and screwdriving tools easier
Two laser lines for simple, precision positioning along the scribe mark from the left or right
Product specifications
Blade Diameter: 260 mm
Dust Extraction Connection Diameter: 27/36 mm
Bevel Capacity: 47 degree
Mitre Capacity (Right): 50 degree
Mitre Capacity (Left): 60 degree
Maximum Cutting Depth (90/90 degree): 305 x 88 mm
Maximum Cutting Depth (45/90 degree): 215 x 88 mm
Special Cutting Depth (90/90 degree): 60 x 120 mm
Crown Moulding Diagonal Cut (45/90 degree): 168 mm
Special Cutting Depth Left (45/90 degree): 40 x 120 mm
Special Cutting Depth Right (45/90 degree): 20 x 120 mm
Maximum Cutting Depth Left (50/90 degree): 196 x 88 mm
Maximum Cutting Depth Right (60/90 degree): 152 x 88 mm
Maximum Cutting Depth Left (45/45 degree): 215 x 55 mm
Maximum Cutting Depth Right (45/45 degree): 215 x 35 mm
Crown Moulding Diagonal Cut (90/90 degree): 168 mm
No-Load Speed (Low): 0 - 1400 rpm
No-Load Speed (High): 0 - 3400 rpm
Power Consumption: 1600 watt
Sound Power Level: 101 dB(A)
Sound Power Uncertainty: 3 dB(A)
Sound Pressure Level: 88 dB(A)
Sound Pressure Uncertainty: 3 dB(A)
Vibration Emission (ah): 2.5 m/s²
Uncertainty K 1 (Vibration): 1.5 m/s²
Work Height: 900 mm
Length: 713 mm
Height: 470 mm
Width: 500 mm
