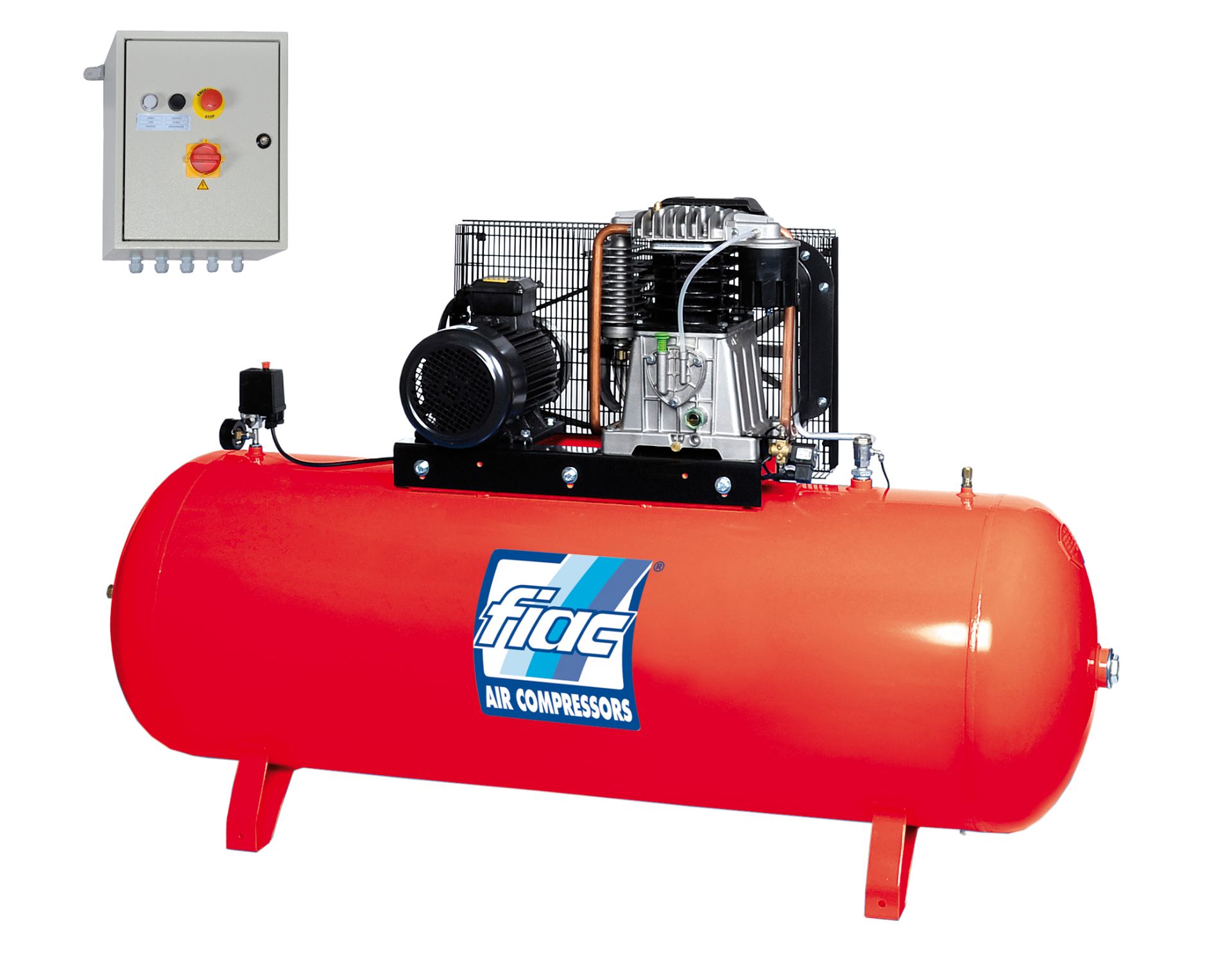

FIAC 10HP 500LTR 400VOLT COMPRESSOR

The series of FIAC piston compressors with belt transmission from 2 to 20 HP are equipped with the powerful and reliable two-cylinder, single stage and two stage AB compressor units, already lubricated with oil; their main characteristics are as follows:

High performance at low running speeds.
Cast iron cylinders.
Reduced vibrations, which also reduces the noise level.
Total absence of oil leaks thanks to the special constructional shape of the single-piece casing
patented by FIAC.
Oil level inspection glass.
Synthetic oil to ensure improved lubrication of moving parts
Balanced sizing of the pumping unit, electric motor and capacity of the tank.
Epoxy powder painting to guarantee perfect and lasting wear. 14 bar version available upon request (+15%) . Surcharge for automatic star-delta starter.

l /500
l /min (Aria asp./Air displ.) 1070
CFM (Aria asp./Air displ.) 37.8
m3/h (Aria asp./Air displ.) 64.2
bar 10
psi 145
HP 10
kW 7.5
Grup# / Pump AB 998
Cil# / St# 2/2
min-1 1270
dB (A) 78
LxPxH_mm / in 1970x590x1300 76.8x23x50.7
kg / lb 260/ 573
Volt/Hz/ph 400/50/3
