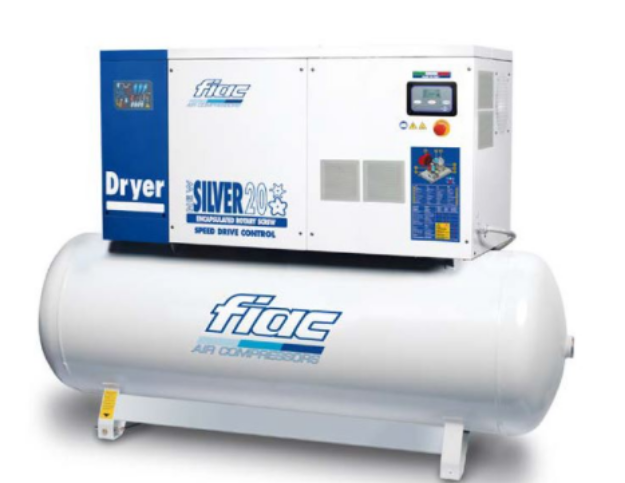

Fiac 20HP 500LTR 400Volt Compressor 20/500 (112.168.0310) 67.1 CFM With Dryer

Fiac 20HP 500LTR 400Volt Compressor 20/500 (112.168.0310) 67.1 CFM With Dryer

From FIAC Research and Development, a new range of low noise screw compressors called NEW SILVER is born to satisfy the demands for small generators of compressed air with low horse power from 5.5 to 50 HP : simple, economical but technologically advanced. NEW SILVER is the ideal solution for costumers who need a complete air station which is easy to use, suitable for continuous and constant operation over time.

- Best performances of the category, high efficiency and reliability
guaranteed by the new air end.
- Effective cooling system.
- FIAC EASY CONTROL BASIC manages, monitors and optimises the duty
cycle of the unit, the reduction of the power consumption is obtained
thanks to an effective and reliable adjustable start/stop.
- Easy and immediate reading of the data.
- IP 54, insulation Class F, continuous duty electric motor is oversized on
every unit. Electric components are positionated inside an IP 54 box.
- The drain tap is easily affixed to the foot of the tank.
- Solid chassis, completely realized in painted metal parts.
- Optimal low noise level through sound proof panels made by high density
of cells.
- Long life and high performance over time.
- Optimal and efficient drying of compressed air. DOL start up. 400V/50Hz/3~

Product Specifications

l 270
dB (A) 67
l /min 1900
CFM 67.1
m3/h 114
bar 10
psi 145
BSP 3/4"
HP 20
kW 15
L mm / in 2030 79.9
P mm / in 630 25
H mm / in 1430 56.3
kg / lb 438 973
