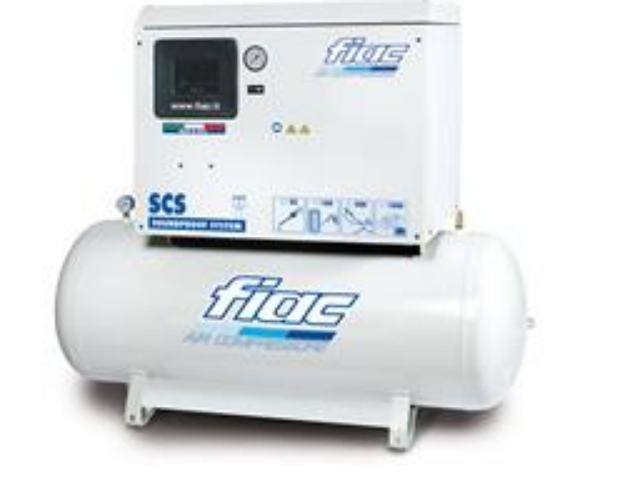

Fiac 3HP 200 LTR 230Volt SCS415/200 Low Noise Piston Compressor Without Dryer (112.168.0670) CFM 14.0

Fiac 3HP 200 LTR 230Volt SCS415/200 Low Noise Piston Compressor Without Dryer (112.168.0670) CFM 14.0

The series of FIAC silent piston compressors of 0.75 to 10 HP are the outcome of recent technological research and design. The SCS and SSA model features a special soundproofing system made up of a metal soundproof panel, painted with epoxy paint, which guarantees remarkably low noise levels plus the total elimination of vibrations (acoustic pressure < 70 dB). The modular structure that makes this line of products stand out against others means that you can choose from different versions: compressor on the ground, compressor on tank of 270 or 500 litres and compressor on tank with built-in drier with refrigeration cycle. The main technical characteristics are as follows:

Electro-mechanical synoptic control panel with start button, emergency button, hour meter and pressure gauge.
Supplementary ventilation system, controlled remotely by means of a thermostatic probe
Electric cabinet and electric motor with protection rating IP55
Shock-absorbing system with 4 attachment points

Product Specifications

l 200
l /min 400
CFM 14
m3/h 24
bar 10
psi 145
HP 3
kW 2.2
Grup# / Pump AB 515
Cil# / St# 2/1
min-1 1210
dB (A) 68
LxPxH_mm / in 837x592x735 32.6x23x28.6
kg / lb 175 386
