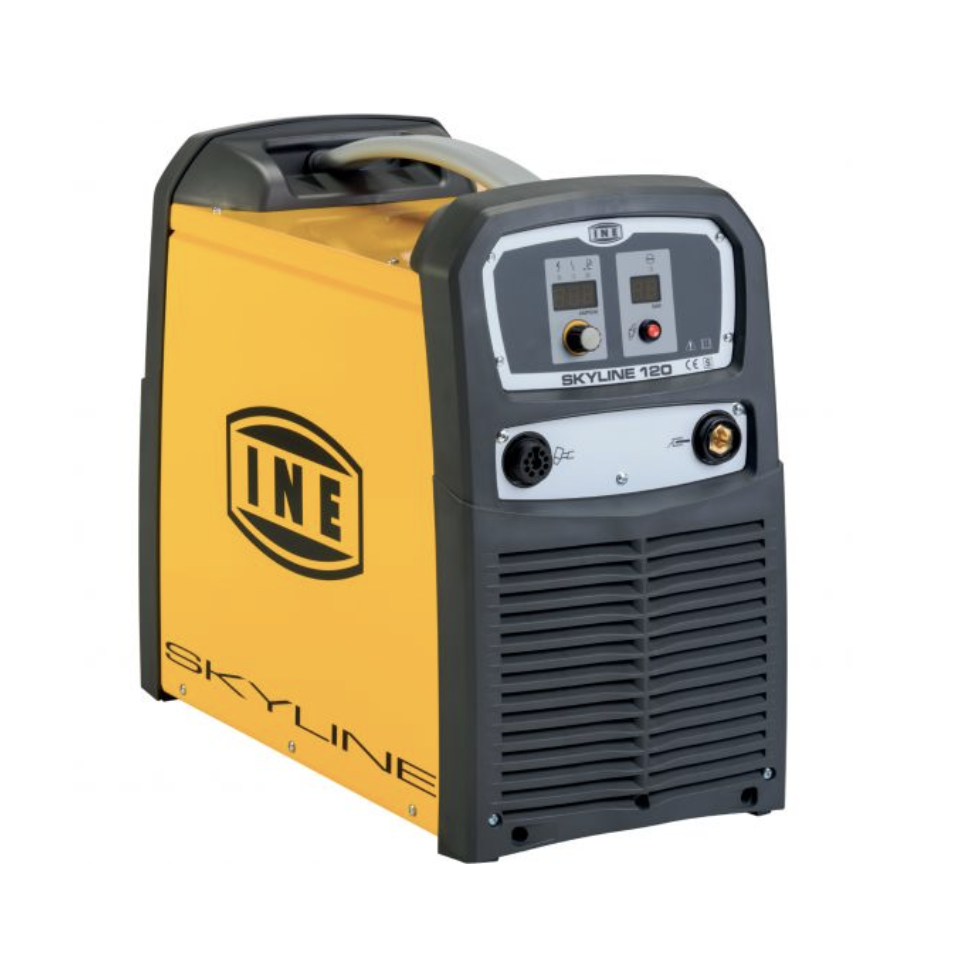

Ine Skyline 120 Plasma c/w 4m Earth Cable & 6mtr UPH-90 Torch 400V 40mm Capacity
Inverter power source for use in the plasma cutting of metals. It is equipped with a pilot arc restart device which allows the continuous cutting of punched plates and grids. It is designed for use especially in light-to-medium steel structural works.
Current generator for the plasma cutting of metals, designed for even the most discerning professional, while being extremely simple to use for the less experienced operator to guarantee results that are always perfect. It is designed for use in ligth-to-heavy structural steel works. These power sources have been designed and implemented on the base of the most updated and innovative technologies conceived for inverters and microprocessors in power electronics and signal processing. Thus a system has been achieved that, in addition to the traditional dependability of INE products, is featuring high dynamics of the necessary control for obtaining very good quality cutting. The generator gives excellent quality cuts without burring on the reverse for both fine and medium thick sheets in soft steel, stainless steel, aluminium and aluminium alloys. Cutting parameters are set by means of the fully digital control board, which assures process quality and reproducibility. The pilot arc is initiated by starting LIFT (without the use of high frequency); this allows excellent outward absence of electromagnetic interference. An automatic restart device allows the continuous cutting of punched plates and grids. The protection systems on the generator make it extremely safe to use and protect its integrity in case of overheating and overloads. Furthermore, with the innovative intake power control function it is ideal for using with any any sort of power of mains exploiting all its available energy. PR7 power source trolley is available for greater ease of use and movement.
Product Specifications
Main voltage 3x400 V
50-60 HZ
Delayed line fuse
25 A - 400 V
Max. absorbed power
17.0 kW
Power Factor
0.94
EFFICIENCY ɳ
91%
IDLE STATE
30W
GAMMA CURRENT REGULATION
25÷120 A
CURRENT REGULATION
LINEARE
Duty Factor
120A 60%
105A 100%
No-load voltage
314 V
Max thickness on mild steel
40 mm
55 mm severance
Max thickness on stainless steel
30 mm
40 mm severance
Protection class
IP23S
Weight
39 kg
Dimension (WxDxH)
302x675x525 mm
