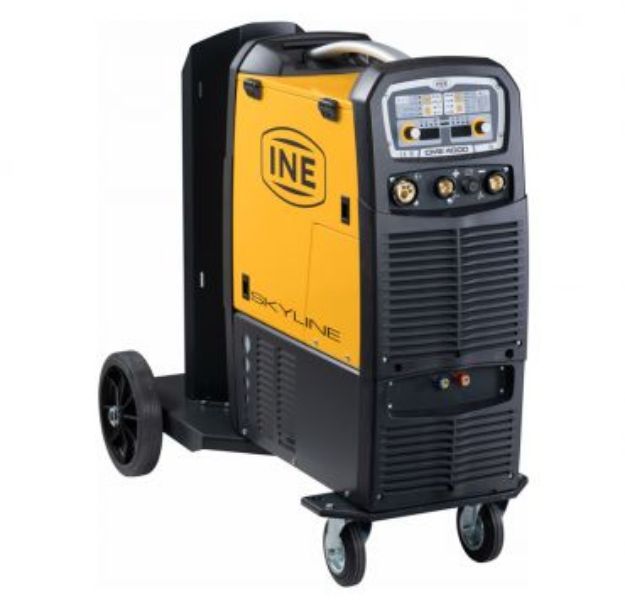

INE SYLINE KME4000 SYNERGIC WITH PULSE FACILITY 3ph 400V 32A MMA/MIG WELDER
SKYLINE KME 4000 is the new multifunction synergic inverter-based generator with separate wire feed, for use in short/spray and pulsed arc* (* optional) MIG/MAG wire welding on steel, stainless steel and aluminium and in welding with coated electrodes (MMA). The inverter technology and the special design features have contributed to the reduction in weight and size, as well as in absorbed power, without penalizing their reliability and performance. The welding process, controlled by the microprocessor thousands of times per second, ensures stable and almost spatter-free welding, exceptional dynamics (even at low amperage), and perfect arc start. The user-friendly and intuitive control board allows to quickly set the welding parameters and displays their exact instant measurement, thus ensuring process quality and reproducibility. MMA welding operation allows adjustment of both Hot Start, to facilitate arc start when welding with coated electrodes, and Arc Force, to prevent these from sticking when welding. The power sources are equipped with appropriate safety devices to ensure their performance. A temperature sensor and the mains voltage control (fluctuations between -10% and +10% of the nominal value) protect the internal components. Versions available are the air-cooling-on-trolley and the water-cooled version (with built-in torch cooling unit).
Welding process
MMA
MIG/MAG Sinergico pulsato
MIG/MAG
MIG/MAG sinergico
Product Specifications
Input (3Ph 50-60Hz) 400 V~
Delayed line fuse 16 A
Max absorbed power 16.2 kW
Power factor (PF) 0.94
Current range 6-400 A
Duty cycle at 40% 400 A
Duty cycle at 60% 330 A
Duty cycle at 100% 280 A
No-load voltage 62 V
Protection class IP23S
Weight 41 Kg
Wire feeder weight 16 Kg
Weight (complete version) 94 Kg
Dimension (WxDxH) 302x645x525 mm
Wire feeder dimensions (WxDxH) 230x615x432 cm
Dimensioni WxDxH (complete version) 554x1015x1436 mm
Max refrigerator fluid capacity 9 Lt/Min
Water tank volume 7 Lt
