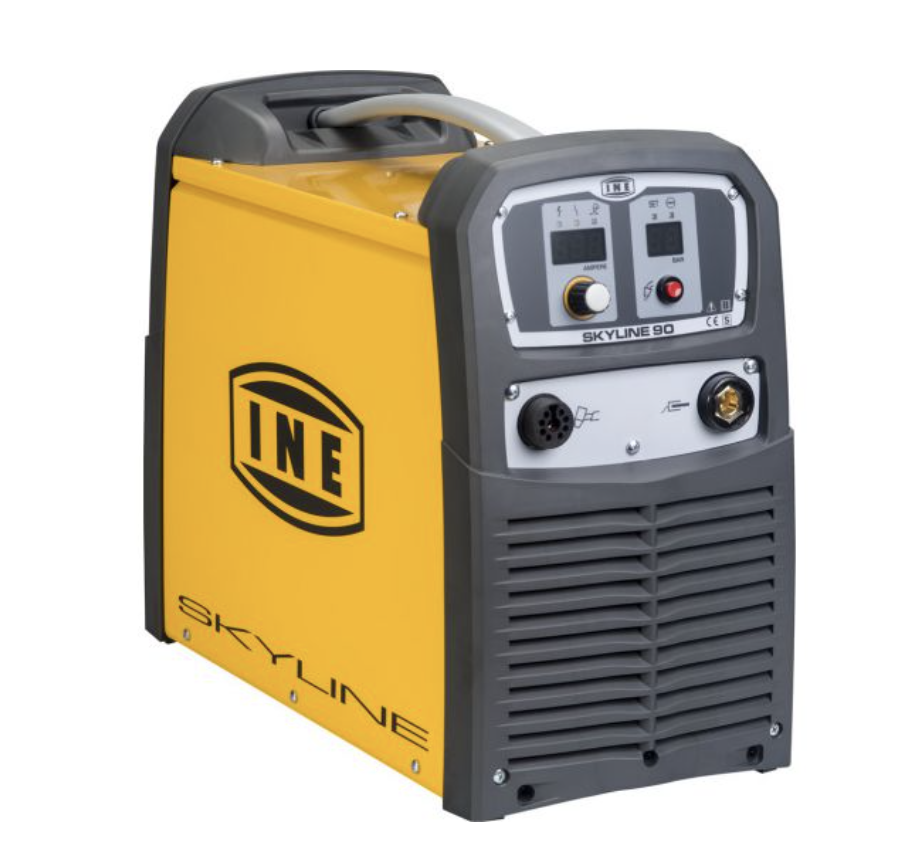

Ine Skyline 90 Plasma c/w 4m Earth Cable & 6mtr UPH-90 Torch 400V 30mm Capacity
Inverter power source for use in the plasma cutting of metals. It is equipped with a pilot arc restart device which allows the continuous cutting of punched plates and grids. It is designed for use especially in light-to-medium steel structural works.
Current generator for the plasma cutting of metals, designed for even the most discerning professional, while being extremely simple to use for the less experienced operator to guarantee results that are always perfect. It is designed for use in ligth-to-heavy structural steel works. These power sources have been designed and implemented on the base of the most updated and innovative technologies conceived for inverters and microprocessors in power electronics and signal processing. Thus a system has been achieved that, in addition to the traditional dependability of INE products, is featuring high dynamics of the necessary control for obtaining very good quality cutting. The generator gives excellent quality cuts without burring on the reverse for both fine and medium thick sheets in soft steel, stainless steel, aluminium and aluminium alloys. Cutting parameters are set by means of the fully digital control board, which assures process quality and reproducibility. The pilot arc is initiated by starting LIFT (without the use of high frequency); this allows excellent outward absence of electromagnetic interference. An automatic restart device allows the continuous cutting of punched plates and grids. The protection systems on the generator make it extremely safe to use and protect its integrity in case of overheating and overloads. Furthermore, with the innovative intake power control function it is ideal for using with any any sort of power of mains exploiting all its available energy. PR7 power source trolley is available for greater ease of use and movement.
Product Specifications
Main voltage 3x400V~ 50-60Hz
Delayed line fuse
20A - 400V~
Max. absorbed power
11.7 kW
Power Factor
0.94
EFFICIENCY ɳ
91%
IDLE STATE
30%
GAMMA CURRENT REGULATION
25÷90A
CURRENT REGULATION
Lineare
Duty Factor
90A 50%
85A 60%
75A 100%
No-load voltage
275V
Max thickness on mild steel
30 mm
42* mm severance
Max thickness on stainless steel
23 mm
30* mm severance
Protection class
IP23S
Weight
27 Kg
Dimension (WxDxH)
250x585x432 mm
