PARWELD XTM211DI-P2 4 in 1 DIGITAL MULTI PROCESS MIG INVERTER AC TIG DC TIG AND MMA C/W Machine with MMA leads, twin gas hoses, 3M250A MIG torch 4 Button, PRO TIG 4M torch with 3 button control

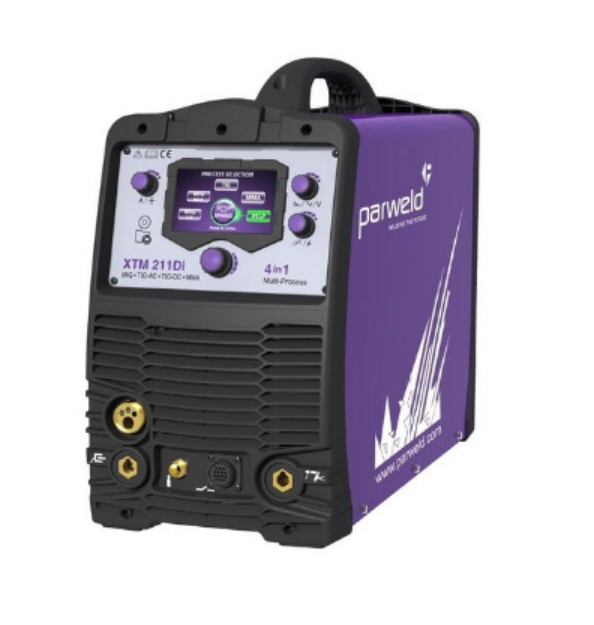

Parweld XTM211DI-P2 4 in 1 Multi-Process Inverter
The XTM 211Di MIG Inverter has 4 different processes available to the user making it ideal for the welding of Steels, Stainless Steels and Aluminium using the MIG, AC TIG, DC TIG or MMA process. The machine uses auto polarity switching so there is no need to change the work lead connections on the front of the machine. Instant swapping between the MIG and TIG processes with one touch of the torch trigger makes it well suited to pipe applications or multi process workshops. The multi-language digital user interface rapidly gets you to the correct machine setting with minimal process knowledge, on site or in the workshop.
Large high quality colour screen with multi language easy to follow digital interface
View and adjust machine parameters from the MIG torch handle
HF Start TIG
Instant swapping between MIG and TIG process with one touch of the torch trigger
Rapid synergic setup for MIG, TIG & MMA
MIG Weld, down to 0.9mm thick material
Memory function for all processes to save and recall welding programs
Supplied with MMA lead set, input cable and 2 gas hoses
Pulse TIG function for superior arc control
Product Specification
Parameter: Value
Style: Portable
Machine Type: Inverter MIG/TIG/MMA
Voltage: Range
MIG: 14.5-24V
TIG: 10.4-18.8V
MMA: 20.4-28V
Spool Size: 300mm (15kg) 200mm (5kg)
Feed Box: 2 Roll
Wire Size: 0.6-1.0mm
Duty Cycle: 200A @ 25%
Input Voltage: 110V / 230V (Smart Switching)
Maximum Current: 140A / 200A
Input: Current DC (Eff)
MIG: - 21.4A @ 110V / 15A @ 230V
TIG: - 20.5 @110V / 11.3A @ 230V
MMA: - 20.6 @110V / 15.4A @ 230V
Minimum Fuse Rating: 32A @ 110V / 16A @ 230V
KVA: 3.7
Generator Size: 7 KVA
Enclosure Protection: IP23S
Dimensions: (LxWxH mm) 615 x 275 x 495
Weight: (kg) 27.8
