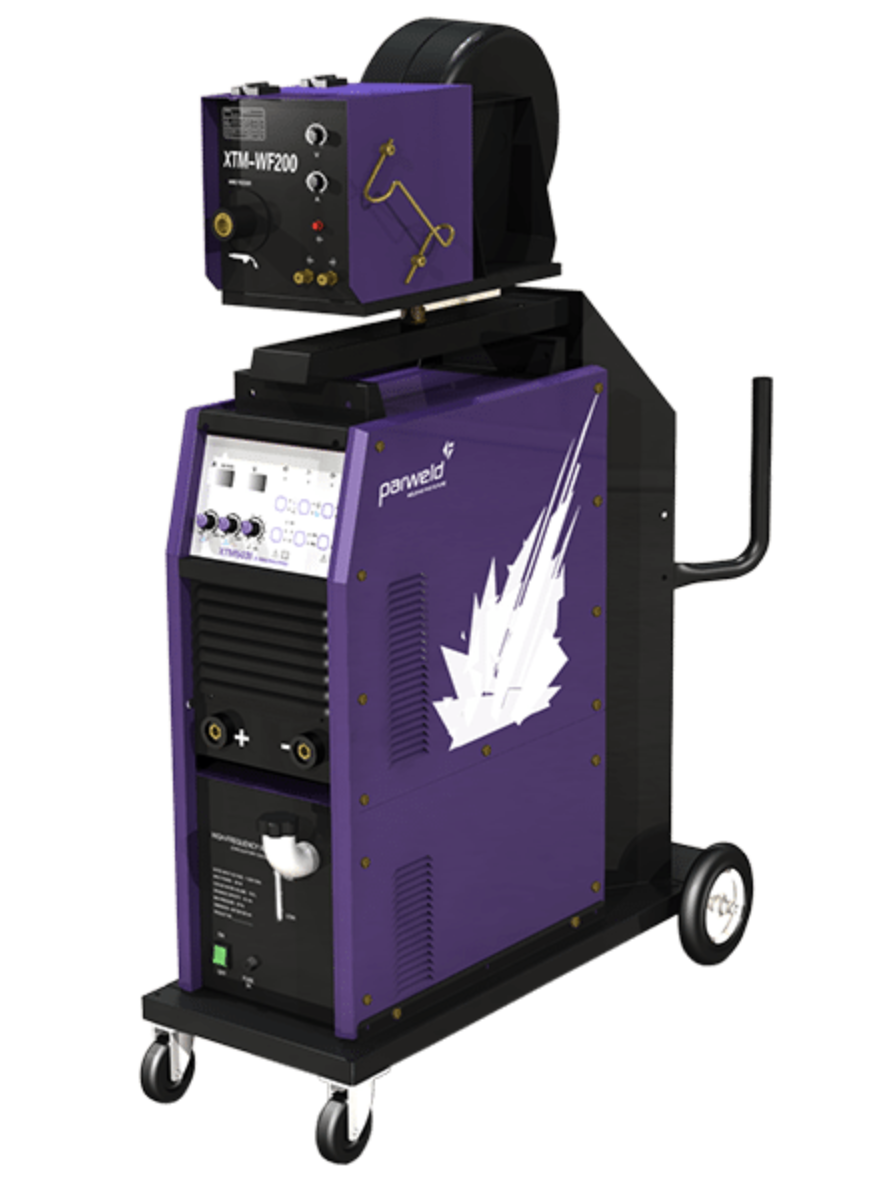

PARWELD XTM503I 500AMP 400VOLT SEPERATE MIG INVERTER C/W WATER COOLER, 10MTR INTERCON, REGULATOR

PARWELD XTM503I 500AMP 400VOLT SEPERATE MIG INVERTER C/W WATER COOLER, 10MTR INTERCON, REGULATOR

The XTM 503I offers the large fabrication industries quality welding performance at a competitive price.

Synergic Control
The synergic control allows rapid machine setup saving time, and the infinite control allows the perfect combination of voltage and amperage.
Inverter technology delivers power savings over transformer based machines.
Flexible
The separate wire feed unit provides flexibility when working with large fabrications or where access is restricted.
Reliable Feeding
The 4 roll geared aluminium feed box ensures reliable feeding of 1.0mm and 1.6mm wires.
Ease of Use
The separate wire feeder carries all the controls, enabling easy fine tuning of the welding operation without having to return to the power source.
Professional three phase compact MIG machine complete with water cooler, suitable for industrial manufacturing and heavy fabrication.

Fuse Rating  60A
Attribute:Spool Siz300mm
KV 27.5
Attribute:Wire Size 0.8 – 1.6mm
Enclosure Protection  IP23S
Weight (kg) 63
Dimensions (mm) 1035 x 430 x 795
Attribute:Voltage 13-50V
Attribute:Feed Box 4R
Attribute:Style  Separate
Attribute:Machine Type  Inverter
Attribute:Wire Feed Speed 1-20m/min
Input Voltage 400V 3P
Duty Cycle 500A @ 60%
Attribute:Maximum Current 500A
Input Current (Max) 41.8A
technology MIG
