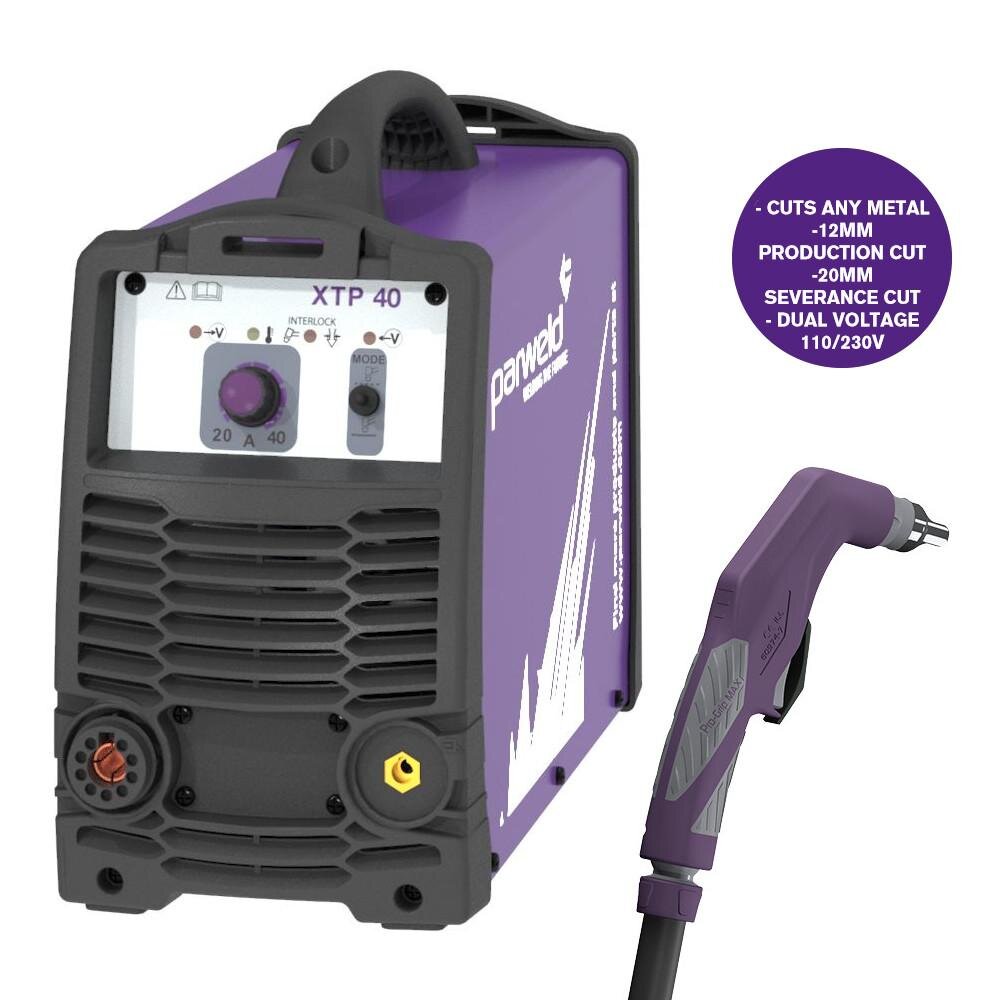

Parweld XTP40 Dual Voltage Plasma
Variable Output
The variable output of the XTP 40 makes it ideal for cutting metals up to 12mm thick where the output power can be fine tuned to minimise dross on the cut edges.
The pilot arc automatically re-ignites enabling easy cutting of mesh or perforated materials. Non HF ignition minimises the risk of interference with electronic systems.
Generator Friendly
The XTP 40 is able to cope with inputs which fluctuate by +/-10% and can be used with the majority of generators.
The machine is housed in a metal case with carry handle and shoulder strap.
Professional Level Air Plasma Cutter, suitable for light industrial manufacturing, maintenance repair, agricultural and DIY, HVAC and site work
KEY FEATURES
• Lightweight 12.6kh
• 40A @ 40% Duty Cycle
• Generator friendly
• Smart switching dual voltage 110-230V
• Ideal for mesh cutting
• 12mm production cut
• 20mm severance cut
• Supplied with XT4000 plasma torch x 6m and 3m earth cable
• Auto over voltage and over current protection
• Includes built in air pressure regulator
• Sturdy metal case
INPUT VOLTAGE
110/230V
OUTPUT CURRENT
10-40A
INPUT CURRENT (MAX)
32A/24A
DUTY CYCLE
40A @ 40%
FUSE RATING
32A/16A
ATTRIBUTE:PRODUCTION CUT CAPACITY
12mm
KVA
3.7
ATTRIBUTE:SEVERENCE CUT CAPACITY
20mm
ATTRIBUTE:STARTING METHOD
Short Circuit
ENCLOSURE PROTECTION
IP23S
DIMENSIONS (MM)
430 x 170 x 270
WEIGHT (KG)
12.6
