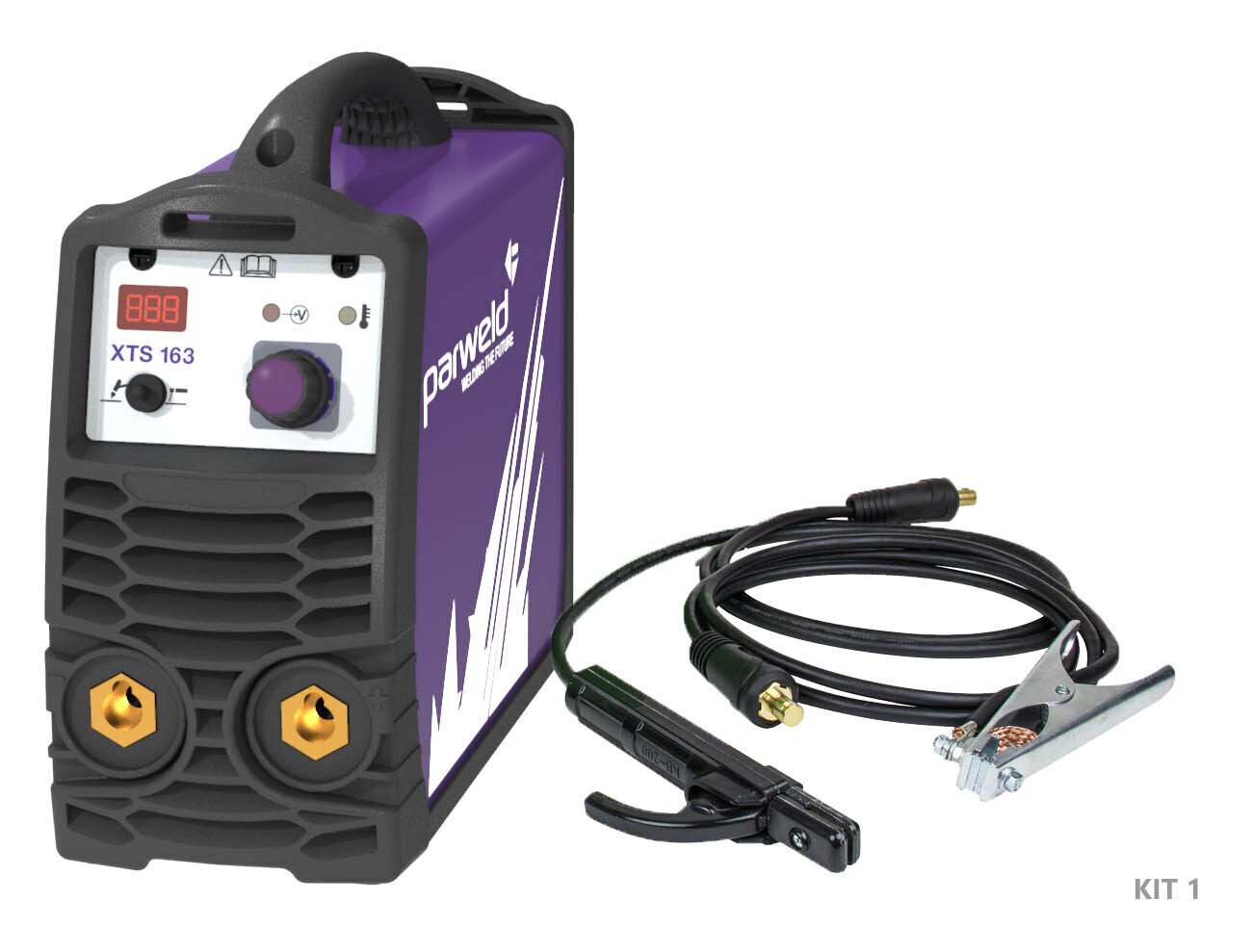

PARWELD XTS163DV 160AMP DUAL VOLTAGE MMA INVERTER
The Parweld XTS 163DV Arc welder is a multi-mode dual voltage (110 +230v) welding package, it has dedicated welding modes for rutile and cellulistic electrodes.The touch button interface is easy to use and ideal for harsh environments.
Electrodes up to 3.2mm can be used with ease.
•The use of inverter technology allows the construction of a lightweight portable MMA Inverter machine which is ideal for maintenance applications.
DC Output
•The XTS 163DV has a DC output and when combined with the correct type of electrode it is suitable for welding alloy, non alloy steels, stainless steel and cast iron. Electrodes up to 3.2mm can be used with ease.
•Tig Welding
By fitting the optional Tig torch and coupling to a suitable gas supply the XTS 163DV can be used for Tig welding and is suitable for welding steel and stainless steel.
•The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.
•Generator Friendly
The XTS 163DV is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators.
•The machine is housed in a rugged steel case.A carry case is available as an optional extra.
ADDITIONAL INFORMATION
No Load Power (V) 50V
Fuse Rating 32A @110V 16A @230V
Efficiency % 85%
Power Factor 0.93
Standards of Conformance ISO / IEC60974-1 ISO / IEC60974-6 RoHs Compliant
Insulation / Protection Class IP23S
Output Current Range (A) 5-160A(230V) 5-140A(110V)
Input Current 17A@110V
Input Power Voltage 110/230V +/- 15%
Key Features
Dual Voltage 110/230V • Generator Friendly • Smart Switching • Easy Electrode Striking with Arc Force • Easy Electrode Re-striking with Hot Start • Supplied with Electrode Holder, 3m Cable, 3m Earth Lead and Wire Brush • Connections 35-50mm Dinse •Over Voltage and Over Current Protection • Built in Electrode Anti Sticking • IP23S • steel case • 3 Years Return to Base Warranty
Weight 4.8 Kg
Dimensions 285mm x 120mm x 250mm
KVA 4.5
Duty Cycle 160A @ 25%
Technology Inverter
