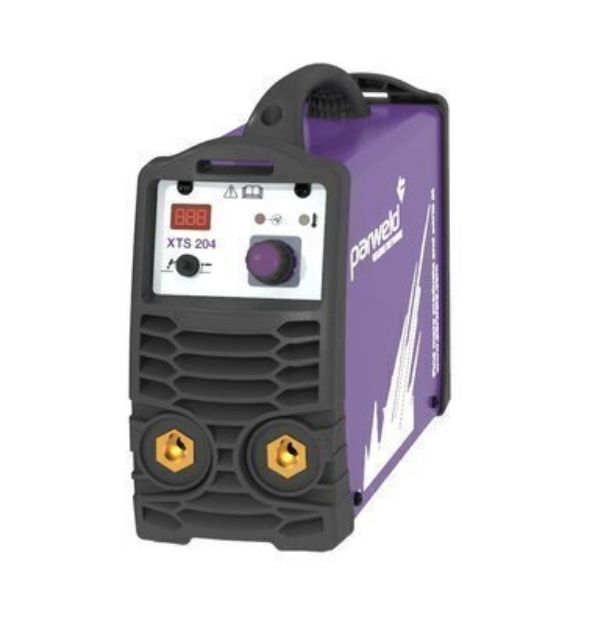

PARWELD XTS204 220v Inverter Welder 200Amp MMA +
DC Output - The XTS 204 has a DC output, when combined with the correct type of electrode it is suitable for welding alloy, non alloy steels, stainless steel and cast iron. Electrodes up to 3.2MM can be used with ease.
TIG Welding - By fitting the optional TIG torch and coupling to a suitable gas supply the XTS 204 can be used for TIG welding and is suitable for welding steel and stainless steel. The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.
Generator Friendly - The XTS 204 is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators. The machine is housed in a rugged steel case and a storage case is available as an optional extra.
3 Year Return To Base Warranty - "No Quibbles" warranty policy. Should something go wrong, Parweld will collect the machine, repair it & return it free of charge.
Ideal For Cellulosic & Rutile Electrodes - The XTS 204' "Multi Mode" allows for smooth running of both rutile & cellulosic electrodes with the press of a button.
Digital Amperage Display
Arc Force / Hot Start / Anti Sticking.
Over Voltage and Over Current Protection.
Includes 3M Lead Set.
ADDITIONAL INFORMATION
KEY FEATURES
• 230V Input
• Lightweight 4.8kg
• 200A @ 20% Duty Cycle
• Connections 35-50mm Dinse
• Easy electrode striking with arc force
• Easy electrode re-striking with hot start
• Supplied with electrode holder, 3m cable, 3m earth lead and wire brush
•Over voltage and over current protection
• Digital amperage display
• Welding mode for rutile and low hydrogen electrodes
• 6 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
OUTPUT CURRENT 10-200A
INPUT VOLTAGE 230V 1P
INPUT CURRENT (MAX) 38A
DUTY CYCLE 200A @ 25%
FUSE RATING 32A
KVA 8.2
NO LOAD VOLTAGE 50V
MAXIMUM ELECTRODE SIZE 4.0mm
CABLE CONNECTION 35-50 Dix
ENCLOSURE PROTECTION IP23S
DIMENSIONS (MM) 285 x 120 x 250
WEIGHT (KG) 4.8
TECHNOLOGY MMA, TIG
