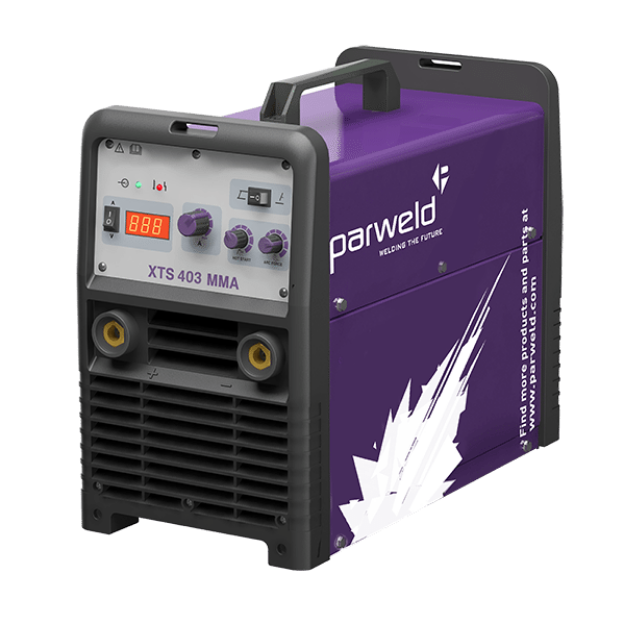

PARWELD XTS403MMA 400AMP 400VOLT DC MMA INVERTER
DC Output
The XTS 403 MMA has DC output and when combined with the correct type of electrode is suitable for welding alloy, non alloy steels, stainless steel and cast iron.
Electrodes up to 6.0mm can be used with ease.
TIG Welding
By fitting the optional TIG torch and coupling to a suitable gas supply, the XTS 403 MMA can be used for TIG welding and is suitable for welding steel and stainless steel.
The lift arc mode limits the arc current when the tungsten touches the work piece preventing electrode damage.
Generator Friendly
The XTS 403 MMA is able to cope with inputs which fluctuate by +/- 15% and can be used with the majority of generators.
The machine is housed in a rugged steel case.
Professional MMA Inverter, suitable for Industrial Manufacturing, Metal Fabrication, Maintenance Repair
ADDITIONAL INFORMATION
MAXIMUM ELECTRODE SIZE 6.0mm
OUTPUT CURRENT 20-400A
DUTY CYCLE 400A @ 60%
INPUT CURRENT (MAX) 27A
KVA 16
INPUT VOLTAGE 400V 3P
FUSE RATING 20A
DIMENSIONS (MM) 530 x 250 x 400
ENCLOSURE PROTECTION IP23S
WEIGHT (KG) 20.5
TECHNOLOGY MMA, TIG
KEY FEATURES
• 400V Three Phase Input
• 400A @60% Duty Cycle
• Connections 35-50mm Dinse
• Generator Friendly
• Easy electrode striking with arc force
• Easy electrode re-striking with hot start
• Supplied with electrode holder, 3m cable, 3m earth lead
• DC output
• Lift arc TIG
• 88V OCV with VRD
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
NO LOAD VOLTAGE 50V (VRD)
CABLE CONNECTION 35-50 Dix
