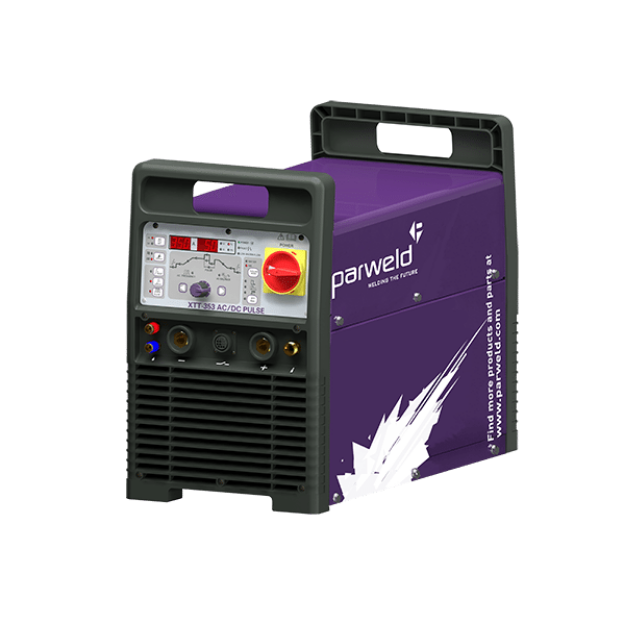

PARWELD XTT353P-P1 350AMP 400VOLT AC/DC PULSED TIG INVERTER C/W TORCH & REGULATOR The XTT 353P can be used in both AC and DC modes for TIG or MMA welding allowing the welding of virtually any material.
Square wave AC output and power pulsing maximises productivity whilst reducing heat output.
The majority of steels can be welded in DC mode quickly using the pulse power function. The AC mode allows the welding of aluminium and magnesium alloys.
The square wave output and adjustable frequency maximises the arc energy offering high welding speeds when coupled with the power pulsing function.
Generator Friendly
The XTT 353P AC/DC is able to cope with inputs which fluctuate by +/-15% and can be used with the majority of generators.
Professional Level Dual Voltage DC TIG Inverter, suitable for industrial manufacturing, metal fabrication, aluminium fabrication and stainless steel fabrication.
ADDITIONAL INFORMATION
DUTY CYCLE 350A @ 60%
INPUT VOLTAGE 400V 3P
ATTRIBUTE:PRE-FLOW FUNCTION 0-10s
ATTRIBUTE:PULSE RATING 0.5-200Hz
UP SLOPE FUNCTION 0-10s
FUSE RATING 16A
ATTRIBUTE:AC FREQUENCY 50-250Hz
INPUT CURRENT (MAX) 24A
KVA 11
ATTRIBUTE:POST FLOW FUNCTION 0-10s
DOWN SLOPE FUNCTION 0-10s
ENCLOSURE PROTECTION IP23S
DIMENSIONS (MM) 606 x 315 x 605
OUTPUT CURRENT 5-350A DC 10-350A AC
WEIGHT (KG) 38
KEY FEATURES
•400V Three Phase
• 350A @ 60% Duty Cycle
• Square wave AC TIG mode
• Variable AC frequency
• Variable pulse frequency
• HF arc starting
• Digital control
• Optional foot control
• Generator friendly
• Supplied with 3m earth lead
• Connections 35-50 Dinse
• 3 years return to base warranty
• Manufactured to IP23S, ISO/IEC 60974-1, ISO/IEC 60974-6 and RoHS Compliant
TECHNOLOGY
MMA, TIG
