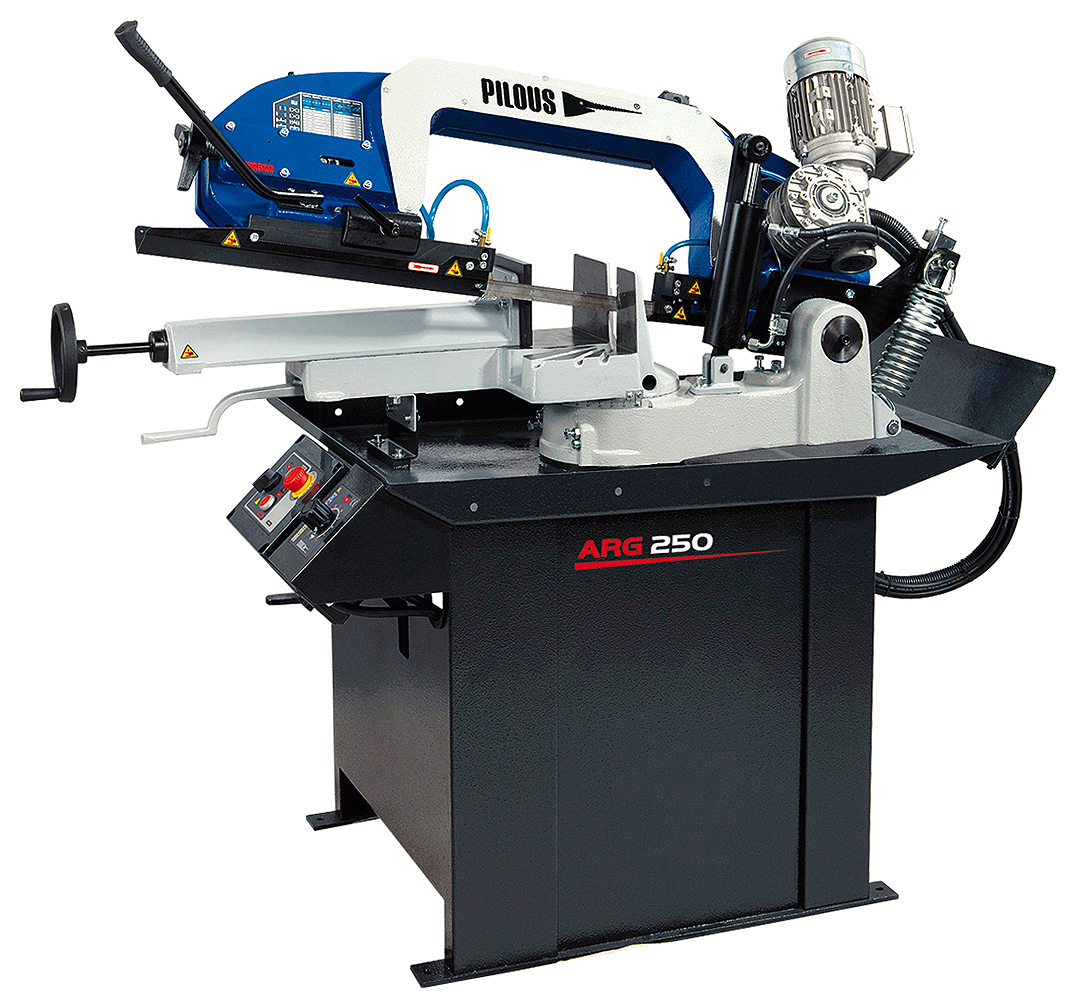

PILOUS ARG250
Universal robust band saw is appraised for general use in continuous uninterrupted production plants and in work-shops (work on locks, maintenance) as well. Industrial band 27 x 0.9 mm is manufactured in many versions and allows for cutting of wide range of materials, including stainless steel or tool steel.Large base and massive arm turning system with large loading surfaces ensure exceptional stability of the machine even when cutting heavy workpieces. The band saw arm uplift is manual; the feed into cut is carried out by the weight of the arm, with the possibility of continuous regulation by the oil damper butterfly valve. When the cut is finished the band saw drive automatically switches off. To facilitate easy arm uplift the machine is equipped with adjustable tension springs that allow for setting of optimum force required for the arm uplift according to characteristics of the material to be cut.
Product Specifications
Main motor: 400 V, 50 Hz, 0,9/1,4 kWPump motor: 400 V, 50 Hz, 0,05 kWSaw blade speed: 40/80 m/min.Working height of vice: 910 mmCool tank: cca 15 lMachine dimensions (min.): 1680 x 750 x 1430 mmMachine dimensions (max.): 1870 x 1530 x 1980 mmMachine weight: 320 kg
