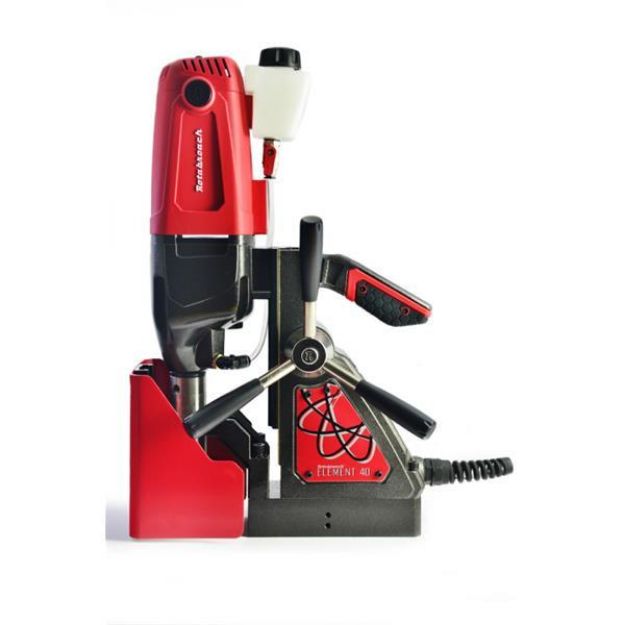

Rotabroach Element 40-1 Perm Base Magnetic Drill 110v

Rotabroach Element 40-1 Perm Base Magnetic Drill 110v

Rotabroach Element 40 magnetic drills are a leading innovative in design. These magnetic drilling machines are manufactured using high-quality components, for reliability and performance in your choice of application. These compact, lightweight and powerful drills combine style, ergonomics and high precision engineering with unique performance enhancing features. The new Element 40 is manufactured with a powerful two-speed mechanical gearbox optimising the machine's performance throughout its capacity range.

Features:

• Quality: With an emphasis on quality the Element range is designed to offer durable, high-performance machines. quality is inbuilt to all aspects of the Element range
• Perform High-quality components are used throughout the entire manufacturing process ensuring a robust and long-lasting product
• Design: The Element range has been developed to push it to the forefront of the industry for performance, looks and longevity
• Lightweight: Inventive designs and advanced manufacturing has ensured the new Element range is among the lightest machines available in the world
• Cutsmart: Unique torque display Cutsmart takes the difficulty out of drilling a hole. Clever electronics and visual display will guide you throughout the cut, optimising the machines' performance and protecting your cutters
• Powerful motor: Increased motor power for greater efficiency.
• High-performance gear: Increased wear resistance on the gears for prolonged life and durability
• Twist drill compatibility: Twist drills can be used with the Element range
• Quick release capstan: Can easily be transferred to enable operation from either side of the machine
• Slimmer, stronger magnet: High power magnet with reduced dimensions and weight
• Mounted cutting fluid bottle: To save space when operating in small areas
• Internal motor cable: Fed into the machine to prevent damage and reduce the risk of harm to the user
• Ergonomic handle: Rubber insert for a better and more comfortable grip
• User-friendly control panel: New easy to read, low profile switches and Cutsmart technology
• Fixed guard
• Internal cable
• Flush switches
• Mechanical clutch

Specifications:

• Maximum Hole Cutting Capacity: 40 mm Diameter x 50 mm Depth
• Full Load 12 amps (110 volt): 1200 watt
• Full Load 6 amps (240 volt): 1200 watt
• Arbor Bore Diameter: 19.05 mm (3/4")
• No Load (Gear One): 600 rpm
• No Load (Gear Two): 300 rpm
• Magnetic Adhesion: 8000 N/850 Kgs 20 degree Celsius with 25 mm minimum plate thickness
• Height: 510 mm
• Width: 175 mm
• Length: 285mm
• Weight: 12.2 Kg

Includes:

• Safety strap
• 4 mm Tee Handled Allen Key
• 3 mm Allen Key
• Twist Drill Chuck Adaptor
• Drill Chuck
• Safety Glasses
