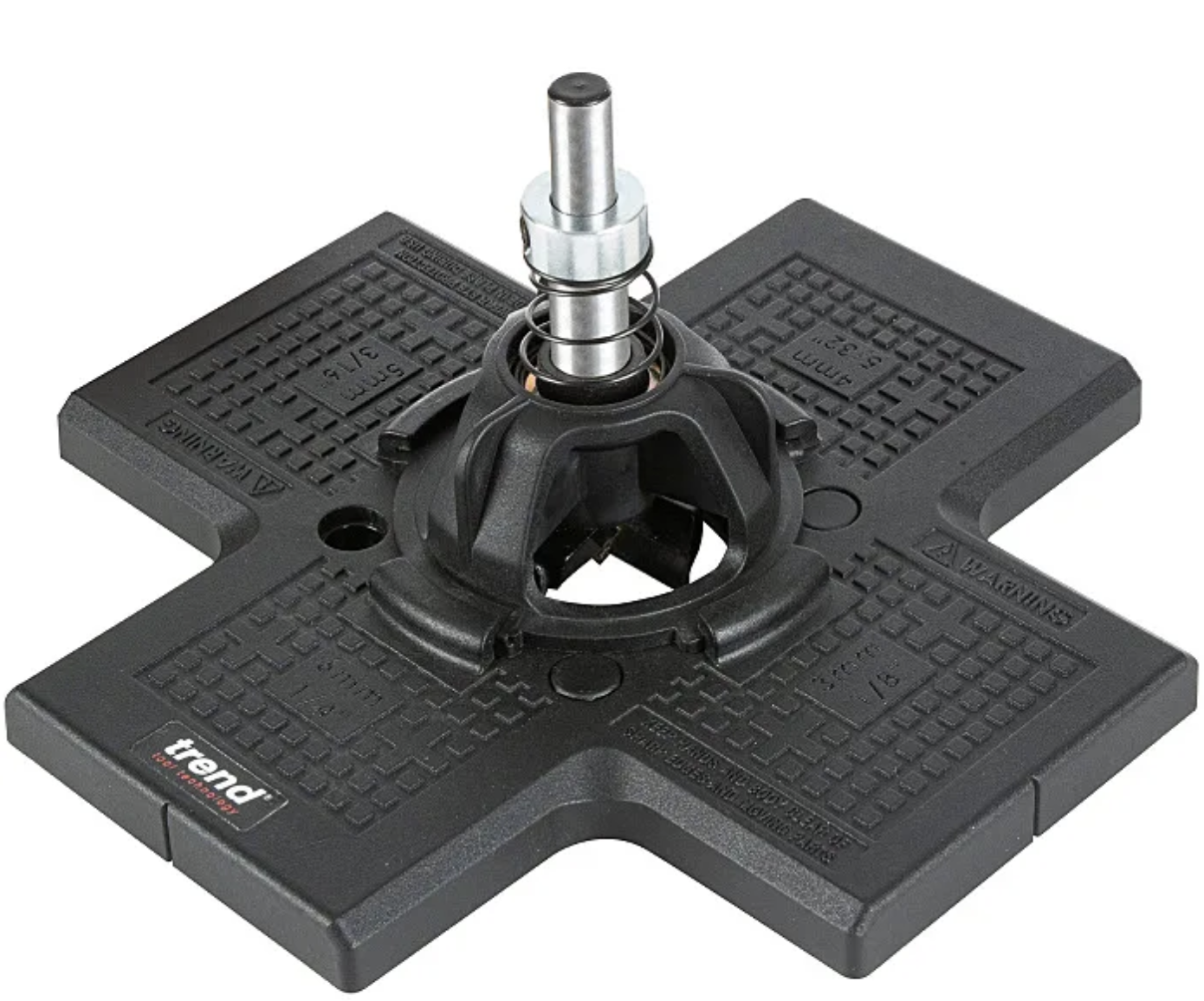

Trend Concealed Cabinet Hinge Jig 35mm
A precision drilling jig for installing concealed cabinet (‘euro-style’) hinges accurately and quickly. Features tool-free inset positioning for rapid setup and pilot hole guides to ensure perfect hinge alignment. For use with a standard Combi Drill. Includes 35mm TCT machine bit.
3, 4, 5, & 6mm Hinge Inset Positions quickly sets the correct distance from the edge of the door.
In-built Depth Stop to prevent over-drilling.
Pilot Hole Plate ensures hinges are mounted perfectly square.
Pin Guide System minimises setup time & guarantees positional accuracy.
Glass Fibre Reinforced Nylon Body minimises weight whilst retaining strength.
Spring Loaded Drill Guide prevents machine bit from damaging door surfaces.
Large Clamping Area to secure the jig during use.
Includes 35mm TCT Machine Bit with cutting spurs for a cleaner finished edge, especially in man-made materials such as MFC and MDF.
Guides for diameter, depth, inset, alignment and pilot holes.
Includes a 35mm diameter machine drill bit.
Suitable for use with a combi-drill.
Can give 3, 4, 5, or 6mm hinge insets.
Ideal for use with manmade boards like MDF.
Nylon jig body with large wings for clamping.
Adjustable depth stop.
