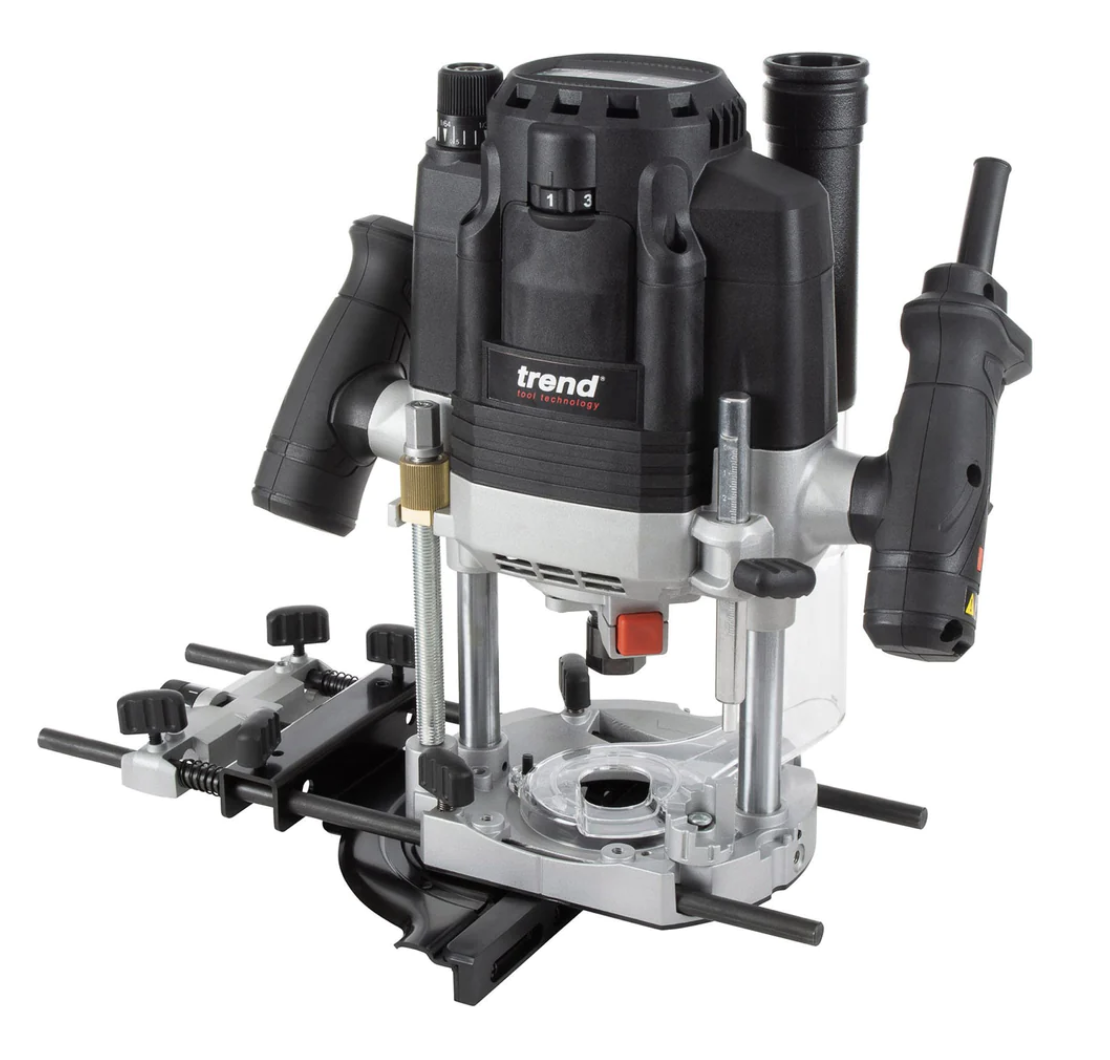

Trend T8EK T8 2200W 1/2 Dual Mode Plunge Router 110V

Trend T8EK T8 2200W 1/2 Dual Mode Plunge Router 110V

80mm Plunge Depth is ideal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling.
Precision Centring System to ensure perfect concentricity between cutter and guide bush for pinpoint accuracy with routing jigs.
Router Table Compatible with height adjuster to easily and safely change cutting height from above the table.
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts.
11-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications.
Vertical Extraction Spout prevents extraction hoses from ‘snagging’ on jigs and materials.
Twin LED Worklights illuminate the cutting area to improve safety and accuracy in low-light situations.
Extra-Wide 75mm Base Aperture to accommodate over-size cutters, such as panel raisers.
7-Position Rotating Turret with pre-set plunge depth limits for fast, repeatable batch and stepped cutting.
Micro-Adjustable Fence with Extraction Port featuring adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
Fine Height Adjuster with an easy-to-read display for precision depth adjustments. 1 rotation equals 2mm height adjustment.
Trend Base Configuration is a standardised fixing pattern of holes that allow routers to be attached to a range of compatible router tables, jigs and accessories.
Ergonomic Inclined Handles feature an integrated power trigger and a soft grip moulding for comfortable operation
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank.
Moulded Carry Case provides safe storage for router and accessories.

Product Specifications

Duty Rating Medium/Trade
Motor Power 2200W
AC Voltage 240V
Plug Type UK 3 pin
Supplied Collet Size 1/2“
Plunge Stroke (Max) 80mm
No Load Speed 10,000-26,000rpm
Supplied Guide Bush 30mm
Fence Rod Length 360mm
Fence Rod Centres 84mm
Fence Rod Diameter 8mm
Base Aperture Diameter 75mm
Cutter Diameter (Max) 50mm
Dust Spout Internal Diameter 35mm
Sound Pressure (Lpa) 94.1 dB(A)
Acoustic Pressure (Lwa) 105.1 dB(A)
Hand/Arm Vibration <3.8m/s2
Weight (Net) 5.8kg
Power Cable Length 3m
