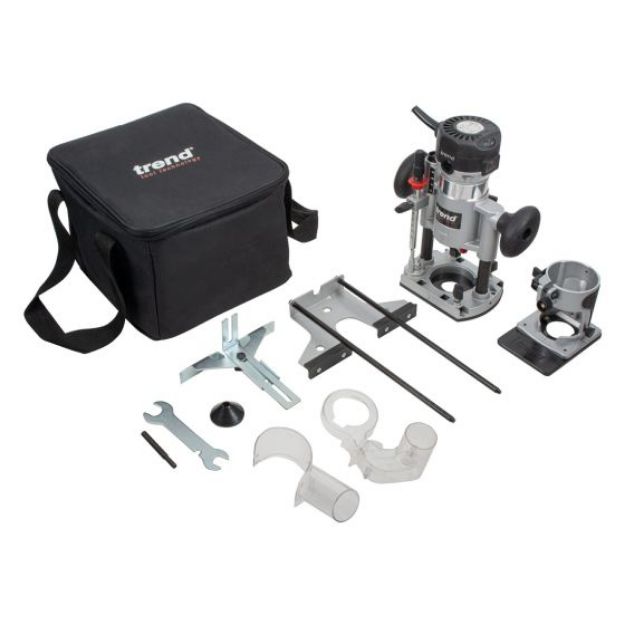

TRENDT1EPS 240V 1/4" Variable Speed Trim / Plunge Router, 710W
Equipped with a 710W motor, this variable 6-speed router is designed with a soft-start feature to prevent kick-back and ensure the protection of the workpiece. It offers plunge and trim base options to cater to a wide range of applications. The extended trim base enhances stability for tasks such as edge rebating, grooving, and moulding.
The plunge base includes a guide bush centralising feature for improved accuracy and precision when using jigs and templates. For precision jointing and inlaying tasks, the router features a micro-adjustable depth setting. The quick-release plunge lock allows for fast and controlled plunge routing.
FEATURES
Extended Trim Base with Rack & Pinion Height Adjustment and up to 37mm cut depth
Plunge Base with 60mm Plunge Depth for light-duty jig, deep or long-reach cutting applications such as hinge fitting, trenching or intumescent strip installation
Precision Centring System to ensure concentricity between cutter and guide bush for pinpoint accuracy with routing jigs
6-Level Variable Speed Control offers precise control across a wide range of cutters, materials and applications
Constant Speed Control monitors the spindle RPM and adjusts automatically to maintain cutter speed for smooth and consistent cuts
Double Locking Collet prevents accidental cutter ejection while a multi-spline profile ensures concentric clamping of the cutter shank
Fine Height Adjuster: with an easy-to-read 0.2mm increment display for precision depth adjustments
Height-Adjustable 3-Position Rotating Turret:for fast, repeatable batch and stepped cutting
Compact Inclined Handles: feature a soft grip moulding for comfortable operationOffset Dust Extraction Spout:for an unimpeded view of the workpiece
Compatible with Trend Guide Bushes for jig use, templating and inlaying
Adjustable Side Fences for templating and edge rebating.
SPECIFICATION
Motor Power: 710W
AC Voltage: 240V
Supplied Collet Size: 1/4"
Plunge Stroke (Max): 60mm
Cutter Height Adjustment - Trim Base: 37mm
No Load Speed: 10,000-30,000rpm
Supplied Guide Bush: 16mm (GB160)
Fence Rod Length: 300m
Fence Rod Centres: 84mm
Fence Rod Diameter: 8mm
Base Aperture Diameter: 40mm
Cutter Diameter (Max): 35mm
Dust Spout Internal Diameter: 35mm
Weight of Base - Trim: 0.32kg
