Trend Hinge Jig C Skeleton two part in case + FREE CORNER CHISEL & HINGE CUTTER (EPT Annual Christmas Sale Special Offer Price)

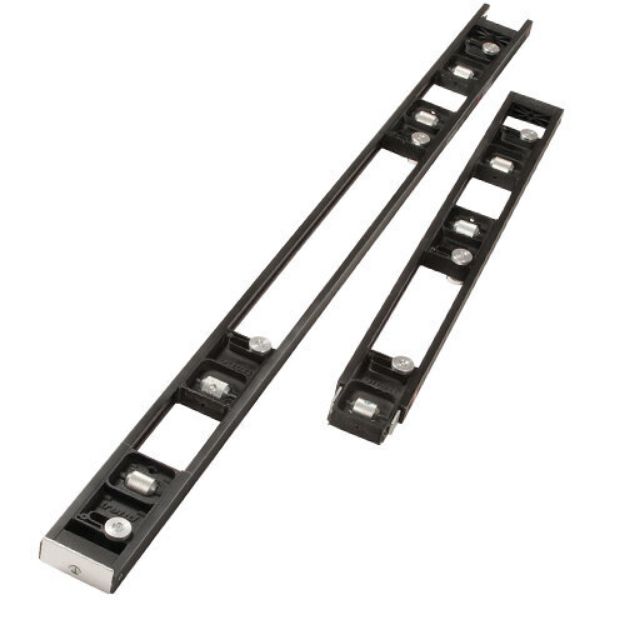

Trend Hinge Jig C Skeleton two part in case

The two part Contractor Hinge Jig is a portable fully adjustable block template set designed for recessing hinges in wooden doors & frames using a plunge router.

It is easy to use with minimal setting-up time, completing the job both accurately & quickly.
Used on-site & in joinery shops to increase productivity with excellent results.
Fully adjustable apertures for fire door requirements and renovation work.
Idea for fitting a new door in an old frame.
No need for marking out in the conventional way.
Quick & simple to set-up as the hinge is used as the pattern.
Clean & accurate recesses are achieved every time. Suitable for timber based doors & square butt hinges.
Can be used on both inside and outside doors.

Product Specifications

Hinge sizes possible
Length min. 2 5/8" (67 mm)
Length max. 5" (127 mm)
Width min. 1/2" (12.7 mm)
Width max. 1 3/8" (35 mm)
Door sizes possible
Height min. 6' 5" (1956 mm)
Height max. 2100 mm* (6' 10"*)
Thickness min. 5/8" (16 mm)

3 x Hinge sliding aperture block assemblies
4 x Bradawls (short blade)
1 x 16mm guide bush
1 x Carry case
