TREND LOCK JIG

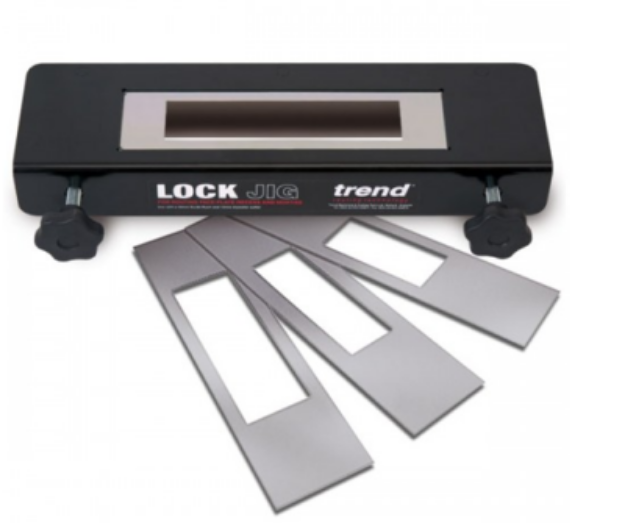

Trend LOCK JIG Lock Recessing JigThis jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.
For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.
Deeper mortises can be achieved with a suitable size of auger bit.
Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
Steel plates & body.
The jig requires a plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
Other sizes of template available to special order, please contact Trend Technical Support for more information.

Product Specifications

Door thickness min.= 34 mm
Door thickness max.= 58 mm
Includes templates for locks having the following face-plate dimensions:
Imperial (Metric)= Template
7/8"x 1/8" (22.2x156 mm)= 1
7/8"x 6 " (22.5x152.5 mm)= 2
1"x 4 3/4" (25.4x121 mm)= 3
1"x 5" (25.4x127.5 mm)= 4
1"x 5 1/4" (25.4x133.5 mm)= 5
1"x 5 3/4" (25.4x145 mm)= 6
1"x 6" (25.4x153 mm)= 7
1"x 6" (25.4x156.5 mm)= 8
1"x 6 1/2" (25.4x165.5 mm)= 9
1"x 7" (25.4x177 mm)= 10
1"x 2 1/4" (25x57.5 mm)= 11 UPPER
1"x 2 1/4" (26x56.5 mm)= 11 LOWER
1"x 6 3/8" (25.6x162mm= 12

Mortise Dimensions

Imperial (Metric)= Template
5/8" x 2 7/8" (16x72 mm*+)= A
5/8" x 4 1/4" (16x107 mm*)= B
3/4" x 3 1/8" (19x78 mm*)= C
3/4" x 4 1/4" (19x109 mm*)= D
