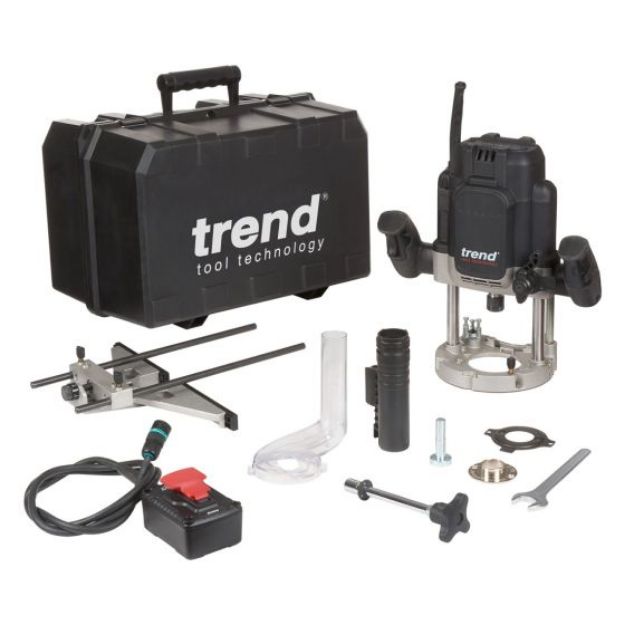

Trend T14 EK 220V 2300w 1/2" 7 Level Variable Speed Plunge Router with Soft Start & Fine Height Adjuster 9000-22000rpm 80mm Plunge Depth Comes with Router Table Safety Switch In Case
The Trend T14EK is a high-performance plunge router with advanced safety features, engineered to deliver reliable, fast, accurate cuts. Perfect for hand-held and Router Table use.
Features
Powerful 2300W Motor delivers consistently high power, torque and speed, and features soft-start to prevent kick-back
80mm Plunge Depth is deal for deep cutting applications. Perfect for lock jigs, worktop joints and timber profiling
Automatic Power Shut-Off prevents the router from accidental start-up if the trigger lock-on switch is engaged, and the power supply is lost and restored or interrupted
Router Table Safety Switch bypasses the Automatic Power Shut Off feature and replaces the need for a typical NVR (No Volt Release) switch
2-in-1 Plunge and Router Table Height Adjuster can be used from above AND below the router, in both table and hand-held mode. Each 360° turn gives 1.0mm adjustment
Trend Base Configuration features a unique precision guide bush centring device to ensure perfect concentricity between cutter and collet for pinpoint accuracy when used with Trend routing jigs
Auto-Lock Plunge Lever allows users to quickly, accurately and safely reposition the plunge position without releasing the handles
Router Table Cam-Lock Quick-Release Mounts make mounting and unmounting the router quick and easy
Top-Mount Cyclone Extraction with enhanced dust adapter efficiently clears debris to give users 360° visibility and prevent extraction hoses from ‘snagging’
Ergonomic Inclined Handles support a natural wrist position, reduce strain, and increase control when routing with arms outstretched
Quick-Set Depth Post with rack & pinion 1.0mm indexed increments and zeroing function for fast, easy adjustment
Micrometer Fine Height Adjuster features 0.1mm increments and an easy-to-read display for precision depth adjustment
Integrated Power Trigger prevents accidental movement and kick-back when turning the router on and off
Micro-Adjustable Side Fence with adjustable facings and 0.1mm increments for accurate edge rebating, grooving and moulding
Automatic LED Work Lights allow users to accurately position the cutter prior to engaging the material and making costly errors in low-light situations
Phosphor Bronze Bushings are corrosion resistant, durable and self-lubricating to prevent racking and deliver a smooth, accurate plunge action
SPECIFICATION
Rating: Professional/Trade
Voltage: 240V
Plunge Stroke: 0-80mm
Power Input: 2300W
Standard Collet Dia.: 1/2"
No Load Speeds: 9,000-22,000rpm
Dust Spout Size ID: 35mm
Guide Bush Dia. Supplied: 30mm
Cutter Diameter Max. (Hand Held): 50mm
Base Aperture Size: 75mm
Rod Diameter: 10mm
Rod Length: 360mm
Rod Centers: 110mm
Weight: 6.5Kg
